Models

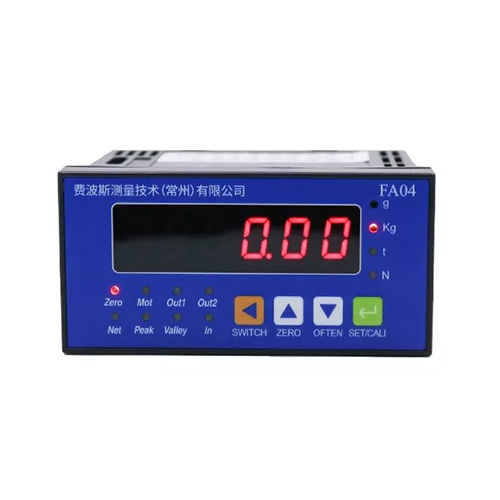

FA04
Features
Input range：0.4~6mV/V
Display accuracy：1/10000
Acquisition frequency：≥100-5000HZ

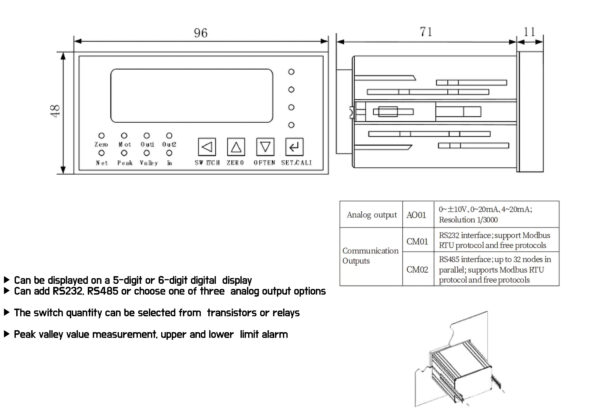

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Input Range | mV/V | 0.4~6 |
| Display | – | Single row 5 seats / Single row 6 seats |
| Display Accuracy | – | 1/10000 |
| Sensor Excitation Voltage | VDC, mA | 5VDC ±2%, 100mA (up to 6 × 350Ω sensors) |
| Power Supply | VDC | 9~30 |
| Acquisition Frequency | Hz | ≥100~5000 |
| Operation Temp. Range | ℃ | -30~60 |
| A/D Performance | – | 24 bits, Delta-Sigma method |
| Output Rate | t/s | 10, 40, 640, 1280 |
| Interface | – | RS485 + RS232 / RS485 + Analog (0~±10V / 0~±5V / 0 |
| Withstand Voltage | V AC | 2000V, 1 min, 50/60Hz |
| Operating Temp. | ℃ | -10~55 |
| Storage Temp. | ℃ | -25~65 |
| Operating Humidity | %RH | 35~85 |
| Storage Humidity | %RH | 35~85 |
| Switching Value | – | 2-point relay (250VAC/3A), 3-point transistor (24V/1A), 1 input |
