Models

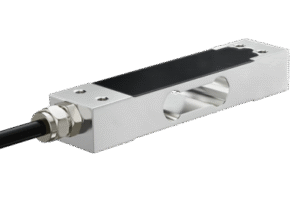

FA5131
Features
Accuracy：C3/C4/C5
Sensitivity：
- 3.0±0.003mV/V
- 2.0±0.002mV/V
Material：Alloy Steel
Dimensions
Specifications
| Item | Unit/Type | C3 | C4 | C5 | A5M | B10M |
|---|---|---|---|---|---|---|
| Maximum Capacity (Emax) | t / klb | – | – | – | – | – |
| Accuracy Class | – | C3 | C4 | C5 | A5M | B10M |
| Approvals | – | OIML R60 C3 | OIML R60 C4 | IML R60 C5 | III 5000 Multiple | IIIL 10000 Multiple |
| Max Load Cell Intervals (nLC) | – | 3000 | 4000 | 5000 | 5000 | 10000 |
| Min Verification Interval (Y) | – | Emax/10000Vmin | Emax/14000Vmin | Emax/18000Vmin | Emax/15000Vmin | Emax/10000Vmin |
| Combined Error | %FS | ≤±0.02 | ≤±0.018 | ≤±0.010 | ≤±0.026 | ≤±0.050 |
| Creep (30min) | %FS | ≤±0.016 | ≤±0.012 | ≤±0.010 | ≤±0.017 | ≤±0.040 |
| Temp. Effect on Sensitivity | %FS/10℃ | ≤±0.011 | ≤±0.009 | ≤±0.008 | ≤±0.013 | ≤±0.040 |
| Temp. Effect on Zero | %FS/10℃ | ≤±0.015 | ≤±0.010 | ≤±0.007 | ≤±0.014 | ≤±0.020 |
| Item | Unit | Specification |
|---|---|---|
| Output Sensitivity (FS) | mV/V | 3.0 ± 0.003 / 2.0 ± 0.002 (depends on model) |
| “S1” Output Sensitivity | mV/V | 2.0 ± 0.002 |
| Input Resistance | Ω | 350 ± 3.5 |
| Output Resistance | Ω | 350 ± 3.5 |
| Insulation Resistance | MΩ (50VDC) | ≥ 5000 |
| Zero Balance | %FS | ≤ ±1.0 |
| Compensated Temperature Range | ℃ | -10 ~ +40 |
| Operating Temperature Range | ℃ | -35 ~ +70 |
| Recommended Excitation Voltage | VDC | 5 ~ 12 |
| Maximum Excitation Voltage | VDC | 18 |
| Safe Overload | %FS | 150 |
| Ultimate Overload | %FS | 300 |
| Recommended Torque (Fixation) | N·m | M12: 100 / M18: 200 / M24: 700 |
| ATEX Classification (Optional) | – | II1G Ex ia IIC T4 / II1D Ex iaD20 T73℃ / II3G Ex nL IIC T4 |
| Item | Specification |
|---|---|
| Wiring Color Code | Red: Input+, Black: Input−, Green: Output+, White: Output−, Transparent: Shield |
| Cable Type | Shielded, 4-conductor |
| Cable Diameter | Φ5 mm |
| Cable Length | 4m (for 100kg~2t), 6m (for higher capacities) |
