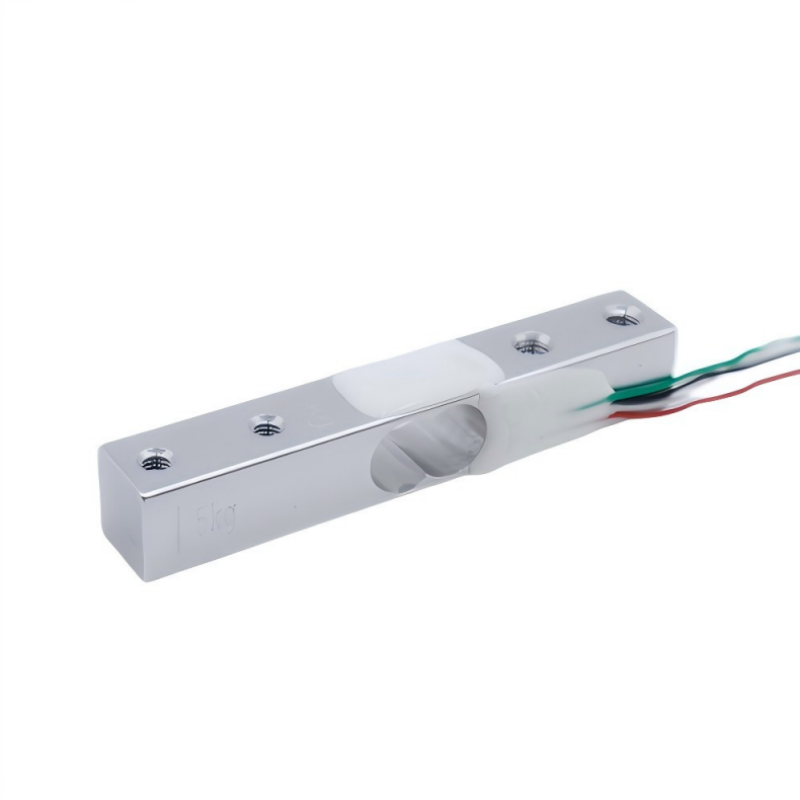

Micro load cell-AM31A
Description
The AM31A is a kind of small bar type load cell, single point load cell design, full bridge load cell with four wires, with the size of 80*12.7*12.7mm, it is made of aluminum alloy, with anodized surface, traditionally used in a kitchen scale and portable scales. But with high accuracy and a simple single-point design, it can be flexibly used in a small space to measure both tension and compression force.
Applications:
kitchen scale
smart cooker
coffee machine
luggage scale
smart shelf

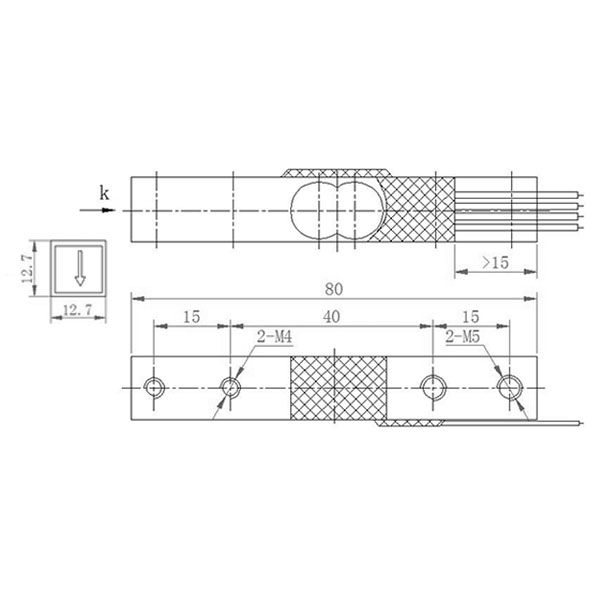

Drawing
Contact us if you need the Datasheet PDF.
