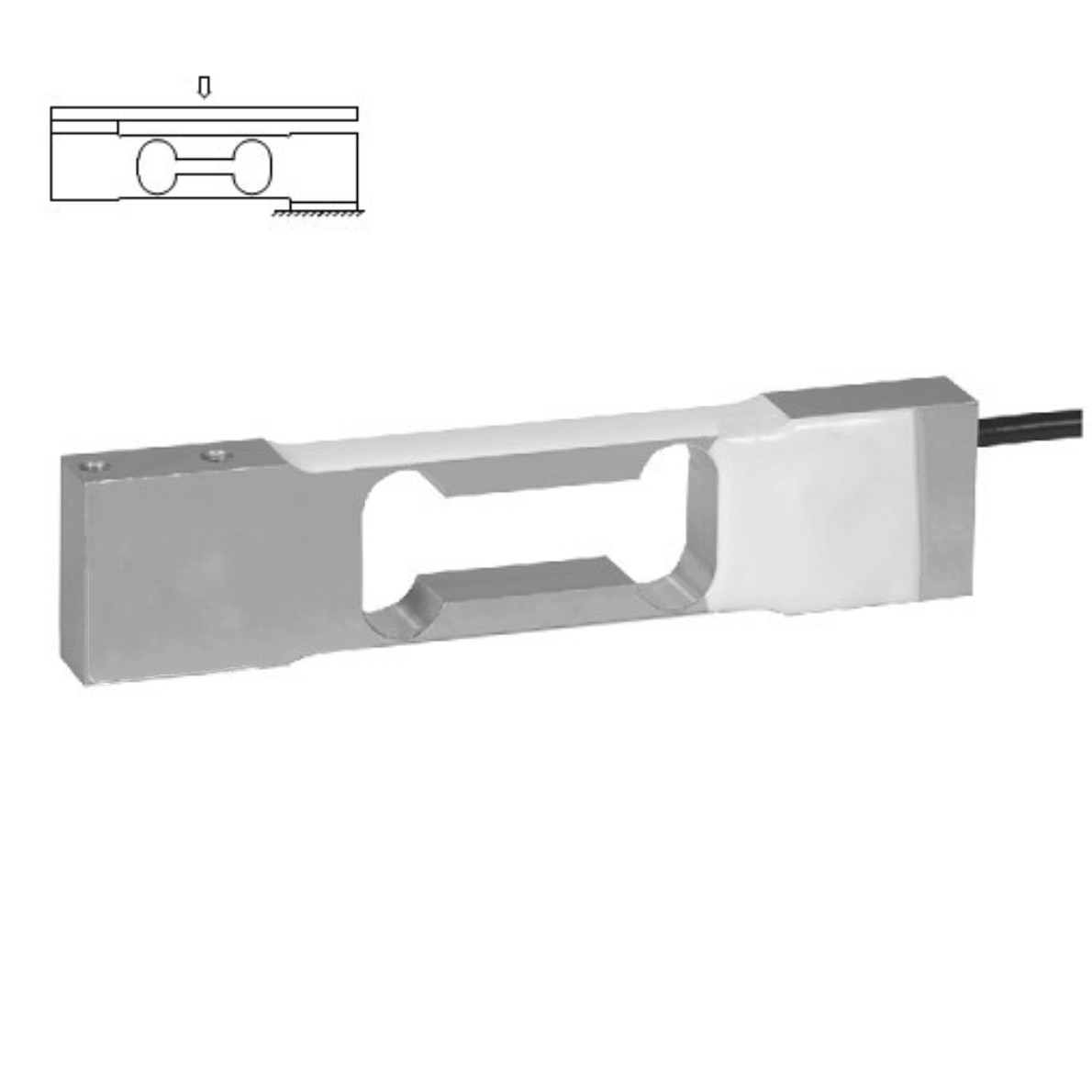

Parallel beam load cell-AP65P
Description
AP65P model is aluminum alloy material, Mainly used for electronic balances, counting scales etc
Max.platform size :150*150mm
small capacity single point load cell
Drawing
AMOWELLSENSOR / Parallel beam load cell-AP65P
Max. platform size :150*150mm
| Accuracy | ±0.02%F.S |
|---|---|
| Capacity | 0.3,0.5,1,2,3kg |
| Certificate | RoHS, CE |
| Creep | ±0.03 %F·S/30min |
| Material | Aluminum alloy |
| Model | AP65P |
| Sensitivity | 1.3±10%mv/v |
| Size | 130*29*12mm |
