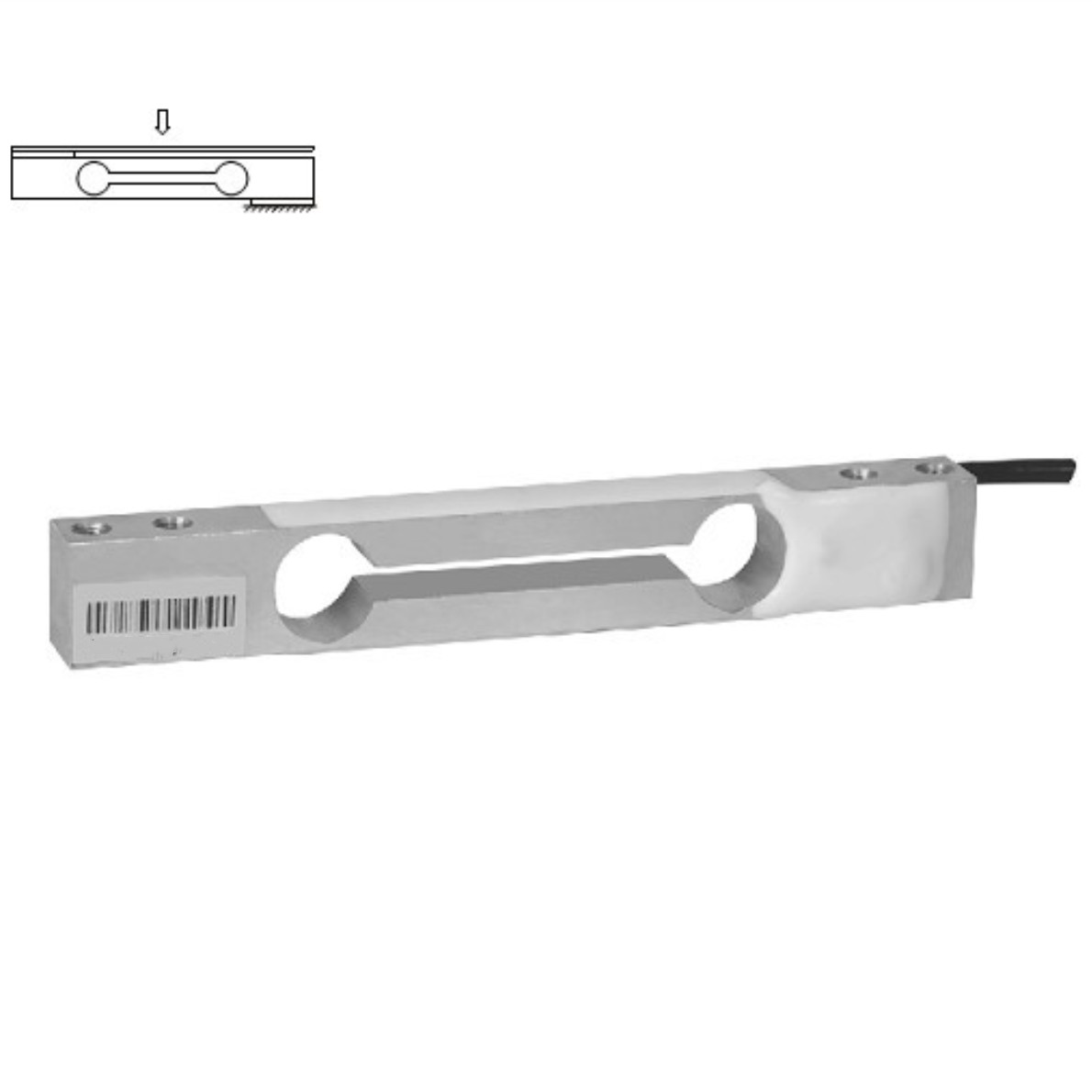

Parallel beam load cell-AP65Q
Description
AP65Q model is aluminum alloy material, Mainly used for electronic balances, counting scales etc
Max.platform size :150*150mm

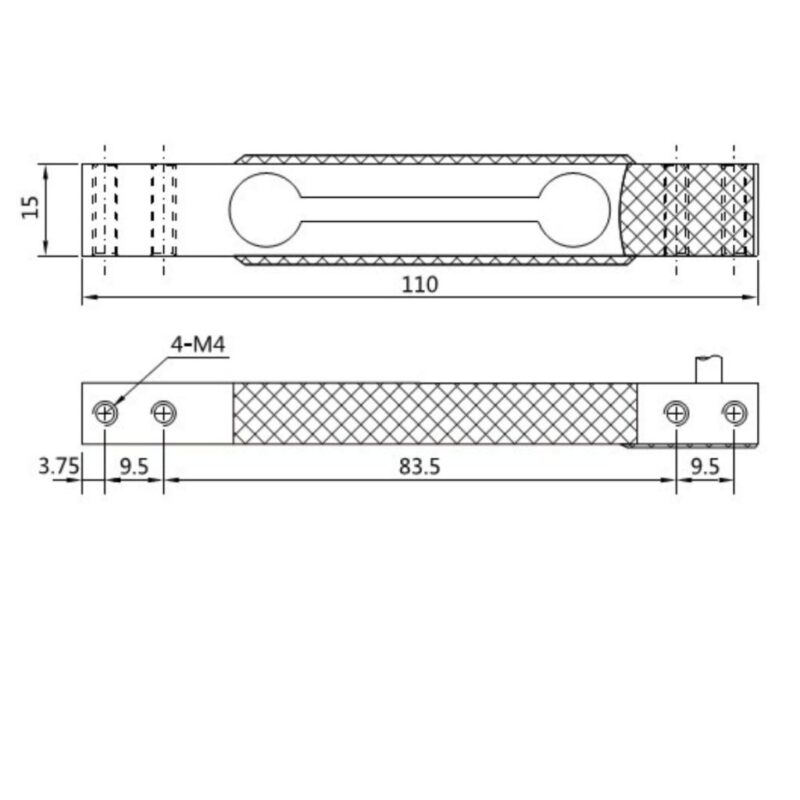

Drawing
AMOWELLSENSOR / Parallel beam load cell-AP65Q
Max.platform size :150*150mm
| Accuracy | ±0.02%F.S |
|---|---|
| Capacity | 0.3,0.6,1,1.5,3kg |
| Certificate | RoHS, CE |
| Creep | ±0.03 %F·S/30min |
| Material | Aluminum alloy |
| Model | AP65Q |
| Sensitivity | 1.0±10%mV/V |
| Size | 110*15*9mm |
