ATO-DYTSC S Beam Load Cell, 50kg-5 ton, Analog/Digital/RS485 Output
After purchasing S beam load cell, you can choose a special digital panel meter to obtain readings directly, or choose a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA, or RS485.
Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.
S beam load cell measuring both tension and compression. Available in 50kg to 5-ton ranges with analog, digital, and RS485 outputs. Offers 2mV/V sensitivity, operates on 5-15V, perfect for hopper scales, material weighing, spring tension tests, and pressure monitoring.
Specification
| Model | ATO-DYTSC |
| Capacity | 50kg-5T (optional) |
| Matched Display Controller | ATO-DPM-DY800 (Click it to the controller page) |
| Matched Transmitter | ATO-LCTR-OAR (Click it to the transmitter page) |
| Output Sensitivity | 2.0-3.0 ±10% mV/V |
| Zero Output | ±1% F.S. |
| Non-linearity | 0.03% F.S. |
| Hysteresis | 0.03% F.S. |
| Repeatability | 0.03% F.S. |
| Creep (30 min) | 0.03% F.S. |
| Temperature Sensitivity Drift | 0.03% F.S./10℃ |
| Zero Temperature Drift | 0.05% F.S./10℃ |
| Frequency Response | 10KHz |
| Material | Alloy Steel |
| Impedance | 350Ω |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Operating Voltage | 5-15V |
| Operating Temperature Range | -20~80℃ |
| Safe Overload | 150% |
| Ultimate Overload | 300% |
| Cable Specification | φ5×6m |
| Cable Maximum Tension | 10kg |
| TEDS | Optional (Contact customer service) |
Feature
- Integrated Tension and Compression Design: The S beam load cell measures both pulling and pushing forces with high precision.
- High Accuracy: This load cell sensor achieves a precision of ±0.03% F.S., ensuring stable and reliable measurements.
- Customizable Capacity and Size: Available in a wide range of capacities from 50kg to 5000kg, with customizable dimensions for different load cell applications.
- Compact and Durable Structure: Designed with a tight and solid construction, the load cell sensor provides long-term stability and high overall accuracy.
- Easy Installation and High Sensitivity: The S beam load cell has a simple mounting process with excellent response sensitivity, ensuring precise force measurement.
- Versatile Mounting Options: Compatible with eye bolts, hooks, and joint bearings, making it easy to integrate the load cell into different systems.
- High-Strength 42CrMo Alloy Steel: The load cell sensor is made from superior 42CrMo alloy steel, offering high strength, excellent toughness, and resistance to wear and fatigue.
- Corrosion and High-Temperature Resistant: Designed to withstand rust, high temperatures, and abrasion, ensuring long service life.
- Hexagonal Waterproof Connector: Prevents wire breakage due to pulling forces, enhances corrosion resistance, and ensures stable signal transmission with strong anti-interference capabilities.
- Standard Mounting Holes: The S beam load cell provides convenient installation and output symmetry, ensuring precise tension and compression measurements.
Dimension (unit: mm)
| Capacity (kg) | L (mm) | H (mm) | W (mm) | T (Thread) |
| 50, 100, 200 | / | / | 18.5 | M10*1 |
| 300 | / | / | 24.4 | M10*1 |
| 500 | / | / | 24.4 | M12*1 |
| 1000 | / | / | 36 | M12*1 |
| 2000 | 70 | 86 | 45 | M16*1.5 |
| 3000 | 80 | 100 | 50 | M18*1.5 |
| 5000 | 92 | 130 | 58 | M20*2 |

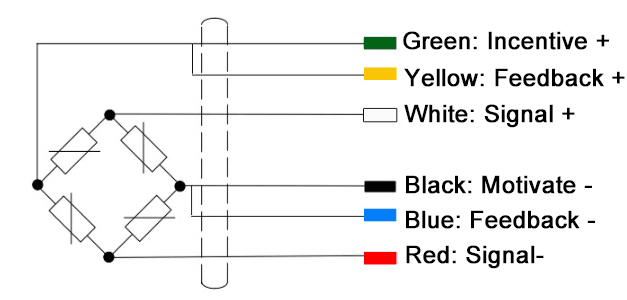

Wiring Method
Application

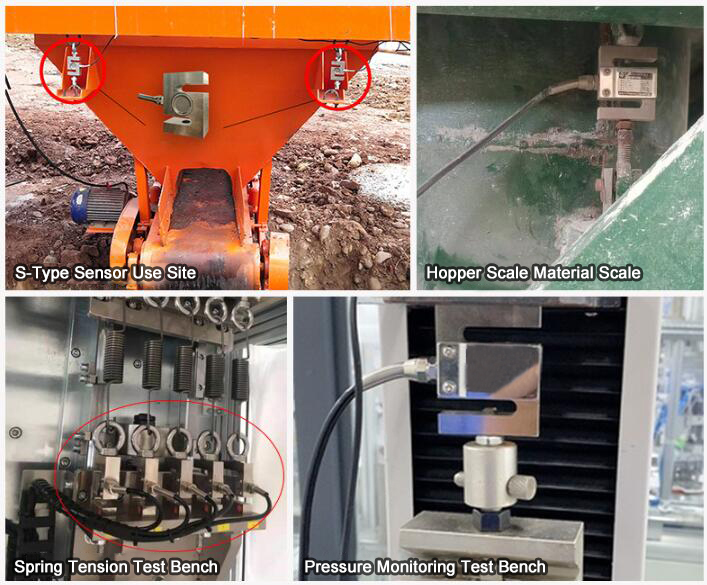

This S beam load cell is suitable for hopper scale material weighing pendant, spring tension test bench, pressure monitoring test bench.
Tips: What is an S Beam Load Cell and how does it work?
An S beam load cell is a strain gauge-based sensor designed to measure both tension and compression forces. It works by converting mechanical force into an electrical signal through strain gauges bonded to the load cell’s structure. When a force is applied, the strain gauges detect minute deformations and generate a proportional electrical output, which is then processed to determine the exact force being exerted. The S-shaped design provides high accuracy, stability, and versatility, making it suitable for applications such as industrial weighing, material testing, and force measurement systems.
