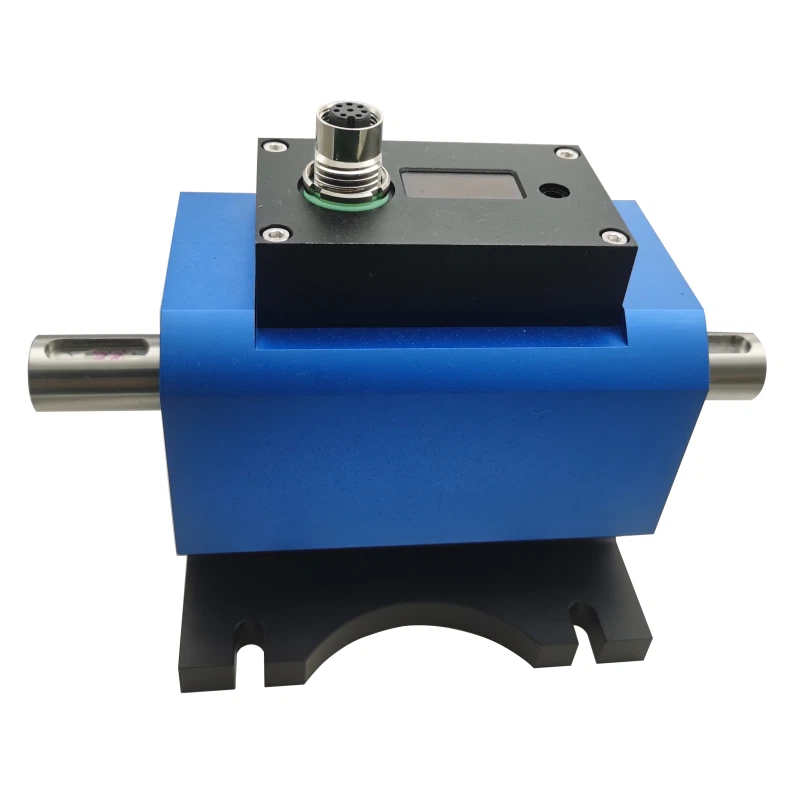

BRG-6251/2/3/4 Shaft Torque Sensor
Features :
1. Non-contact
2. Measuring range: 5-5000 Nm
3. Output: 10±5 kHz, 4-20 mA, ±5 VDC, ±10 VDC, RS485/232
4. Stainless steel shaft
5. Maximum speed: 15,000 RPM
6. Speed output available
7. Display panel for torque, speed, and power
Technical Parameters
| Range | 5,10,20,30,50,100-5000Nm |
| Accuracy | ±0.1,±0.2%FS |
| Zero Temperature Effect | ±0.02%FS |
| Span Temperature Effect | ±0.02%FS |
| Compensated Temperature Range | -10～60ºC |
| Operating Temperature Range | -20～75ºC |
| Torque Output | 10±5kHz ,4-20mA, ±5VDC,±10VDC,
RS485, RS232,CAN, |
| Supply Voltage | 12-24VDC |
| Supply Current | Less than 100mA |
| Electrical Connections | 8-Pin |
| Overload Protection | 200%FS |
| Material | Shaft material 17-4PH stainless steel, housing is aluminum |
| Speed Measurement | Maximum speed: 15,000 RPM, 60/30 pulse,
4-20mA, 5V/TTL, ±5VDC, ±10VDC, RS485, RS232, CAN |
Drawing (mm)
Imported Components
Enables high-speed, long-term operation, outputs positive and negative torque signals, and has strong anti-interference capabilities;
Standard Eight-core Aviation Plug
Plug-and-play, easy installation, suitable for long-distance transmission;
Compact size
Small installation dimensions allow direct installation on the drive equipment, making it suitable for installation in confined spaces.
Torque sensor is a precision measuring instrument for measuring various torques, speeds and mechanical power. It is used in automobile manufacturing, machinery industry, woodworking, medical electronics and other industries.
