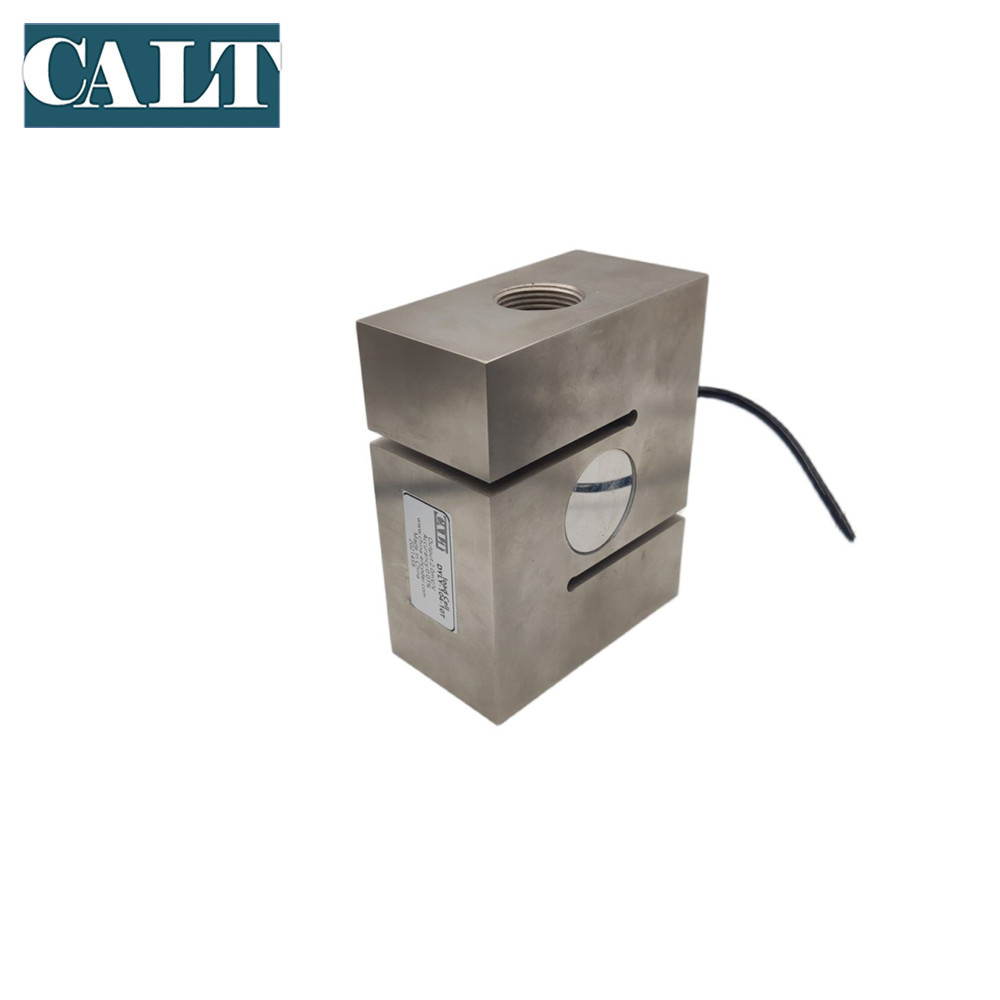

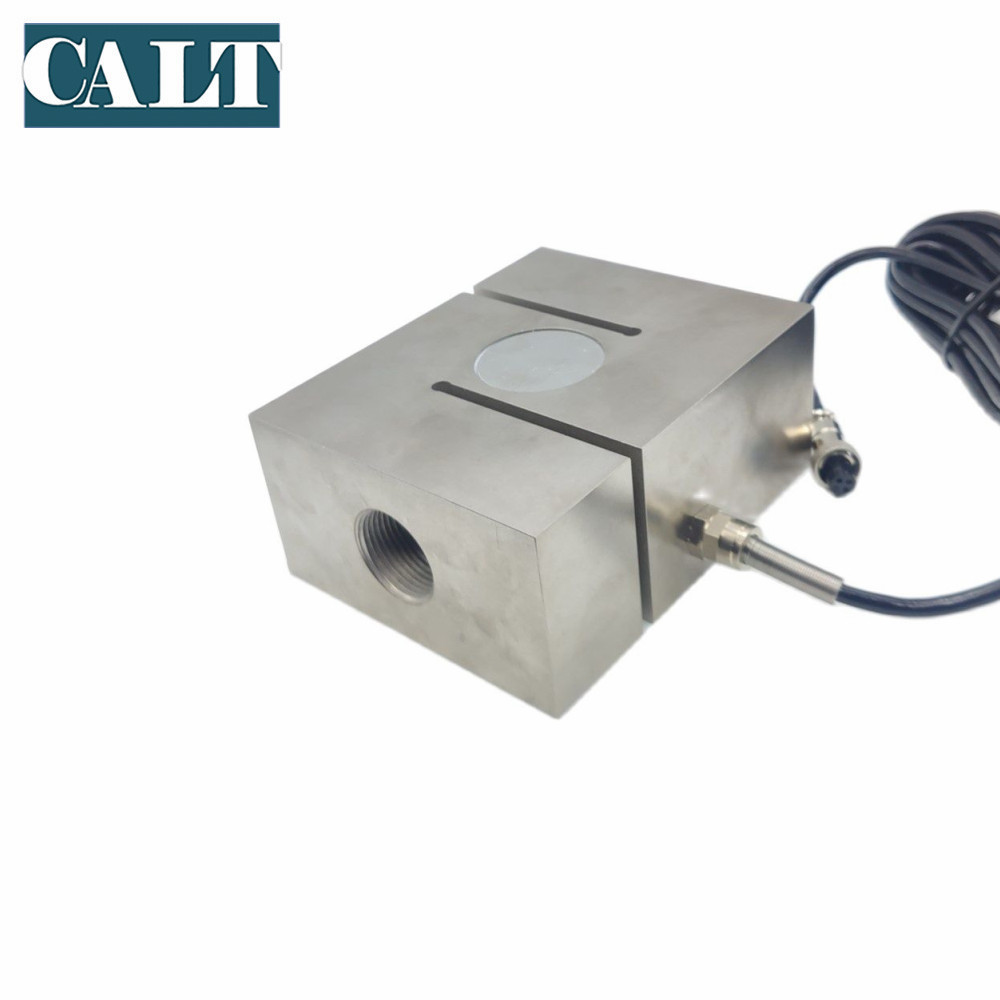

S Type Load Cells DYLY-104
Characteristic and Application fields
It has the advantages of bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel.
Universal materisl testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and othere tension and pressure testing instruments as well as automation equipment and testing field.
Dimension(mm)
| Capacity | 2-M | H | L2 | L1 |
| 200-500kg | M12×1.75 | 70 | 25 | 60 |
| 700kg-1t | M16×2 | 70 | 25 | 60 |
| 2t | M16×2 | 70 | 25 | 64 |
| 3t-5t
10t |
M18×1.5
M30×2 |
94
137 |
35
60 |
86
110 |
Wiring diagram

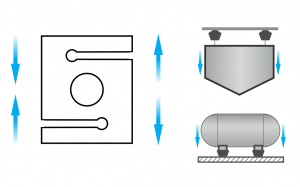

Force diagram
Technical parameter
| Parameter | Unit | Technical
Specifications |
Parameter | Unit | Technical
Specifications |
| Sensitivity | mV/V | 2.0 | Temperature coefficient of sensitivity | ≤%F·S
/10℃ |
±0.03 |
| Nonlinear | ≤%F·S | ±0.05 | Operating temperature range | ℃ | -20℃～+80℃ |
| Hysteresis | ≤%F·S | ±0.05 | Input resistance | Ω | 350±20Ω |
| Repeatability | ≤%F·S | ±0.03 | Output Resistance | Ω | 350±5Ω |
| Creep | ≤%F·S/30min | ±0.05 | Safe Overload | ≤%F·S | 150% F·S |
| Zero output | ≤%F·S | ±1 | Insulation resistance | MΩ | ≥5000MΩ(100VDC) |
| Zero temperature
coefficient |
≤%F·S/10℃ | ±0.05 | Excitation voltage | V | 5V-15V |
