Models
FA01-A4
Features
Input range：0.4~6mV/V
Sampling frequency：≥5KHZ
Rated 0utput：0~±10V/4-20mA

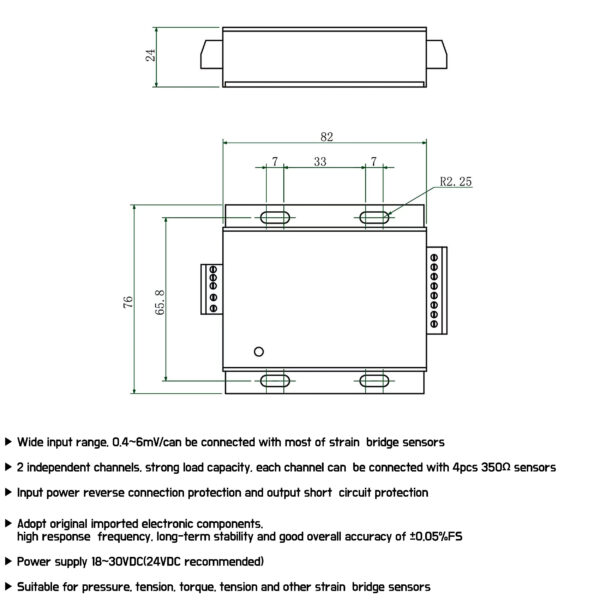

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Input Range | mV/V | 0.4~6 |
| Comprehensive Accuracy | %F.S. | ≤0.1 |
| Sensor Excitation Voltage | VDC, mA | 5VDC ±2%, 100mA |
| Power Supply | VDC | 15~30 |
| Input Load | – | 350Ω sensor × 4pcs |
| Rated Output | V / mA | 0~±5/10V or 0/4~20mA |
| Operation Temp. Range | ℃ | -30~60 |
| Sampling Frequency | Hz | ≥100 |
| Operating Temp. | ℃ | -10~55 |
| Storage Temp. | ℃ | -25~65 |
| Operating Humidity | %RH | 35~85 |
| Storage Humidity | %RH | 35~85 |
