Models

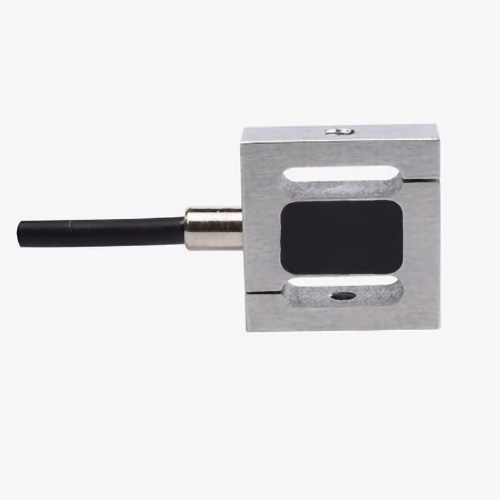

FA301
Features
| Product Name | S Type Load Cell | Capacity | 5,10,20,50,100,200N Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.05%F.S. Or Customized | Non-linearity | ≤0.05%F.S. Or Customized |
| Hysteresis | ≤0.05%F.S. Or Customized | Repeatability | ≤0.05%F.S. Or Customized |
| Input Resistance | 650/350±5Ω | Output Resistance | 650/350±5Ω |
| Temp.effect On Output | 0.05%F.S./10℃ | Temp.effect On Zero | 0.05%F.S./10℃ |
| Insulation Resistance | ≥5000MΩ/100V(DC) | Recommended Excitation | 5V |
| Maximum Excitation | 15V | Compensated Temp Range | -10~60℃ |
| Operating Temp Range | -20~80℃ | Safe Load Limit | 150%F.S. |
| Breaking Load | 200%F.S. | Cable Size | ∅2x3000mm |
| Material | Stainless Steel |
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | S type Load Cell |
| Capacity | N | 5, 10, 20, 50, 100, 200 or customized |
| Rated output | mV/V | 2.0 ± 10% |
| Zero balance | mV/V | ±0.02 |
| Creep (30 min) | %F.S. | ≤0.05 or customized |
| Non-linearity | %F.S. | ≤0.05 or customized |
| Hysteresis | %F.S. | ≤0.05 or customized |
| Repeatability | %F.S. | ≤0.05 or customized |
| Input impedance | Ω | 650 / 350 ±5 |
| Output impedance | Ω | 650 / 350 ±5 |
| Temp. effect on output | %F.S./10 ℃ | 0.05 |
| Temp. effect on zero | %F.S./10 ℃ | 0.05 |
| Insulation resistance | MΩ / 100V(DC) | ≥5000 |
| Recommended excitation | V | 5 |
| Maximum excitation | V | 15 |
| Compensated Temp Range | ℃ | -10 ~ 60 |
| Operating Temp Range | ℃ | -20 ~ 80 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | mm | ⌀2 × 3000 or customized |
| Weight | kg | 0.2 or customized |
| Material | – | Stainless steel or customized |
