Models

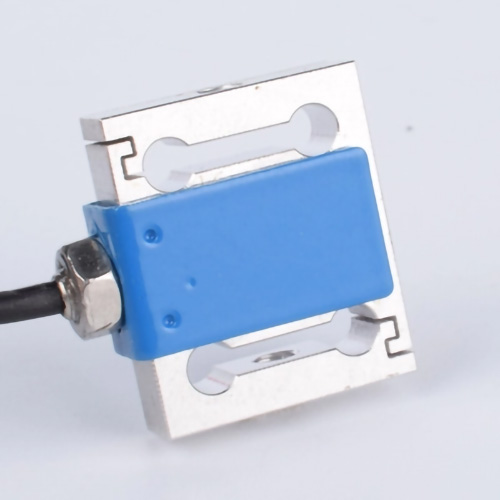

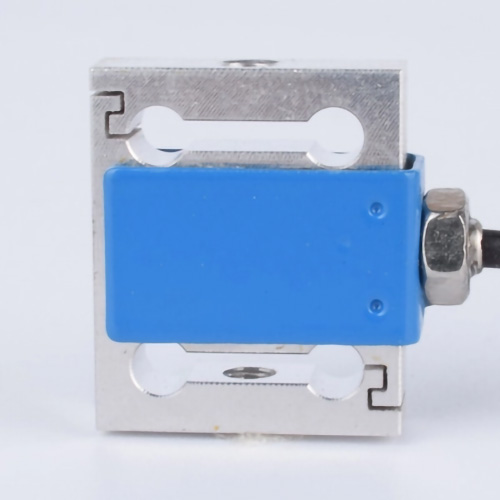

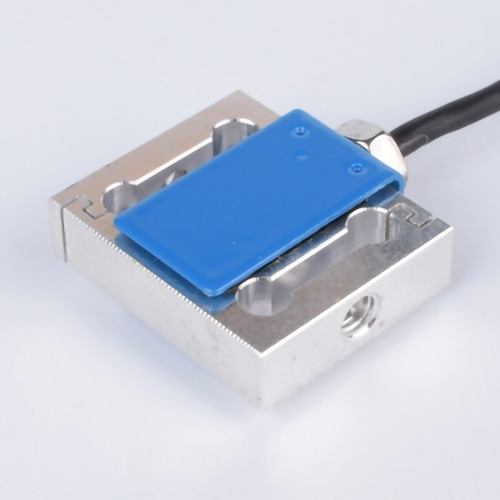

FA302C
Features
| Product Name | S Beam Load Cell | Capacity | 100,300,500,1000,3000,5000,10000kg Or Customized |
|---|---|---|---|
| Non-linearity | ≤0.018%F.S. Or Customized | Hysteresis | ≤0.018%F.S. Or Customized |
| Repeatability | ≤0.024%F.S. Or Customized | Temp.effect On Output | 0.014%F.S./10 ℃ |
Dimensions
Custom-made product
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product Name | – | S Beam Load Cell |
| Capacity | kg | 100, 300, 500, 1000, 3000, 5000, 10000 or customized |
| Rated Output | mV/V | 2.0 ±0.25% |
| Zero Balance | mV/V | ±0.01 |
| Non-linearity | %F.S. | ≤0.018 or customized |
| Hysteresis | %F.S. | ≤0.018 or customized |
| Repeatability | %F.S. | ≤0.024 or customized |
| Input Impedance | Ω | 385 ±10 |
| Output Impedance | Ω | 350 ±5 |
| Insulation Resistance | MΩ/100VDC | ≥5000 |
| Recommended Excitation | V | 5 ~ 15 |
| Maximum Excitation | V | 20 |
| Compensated Temp Range | ℃ | -10 ~ 40 |
| Operating Temp Range | ℃ | -30 ~ 70 |
| Temp. Effect on Output | %F.S./10℃ | 0.014 |
| Temp. Effect on Zero | %F.S./10℃ | 0.017 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 300 |
| Cable Size | mm | ⌀5.4 × 3000 or customized |
| Weight | kg | 0.75 or customized |
| Material | – | Alloy Steel or customized |
