Models

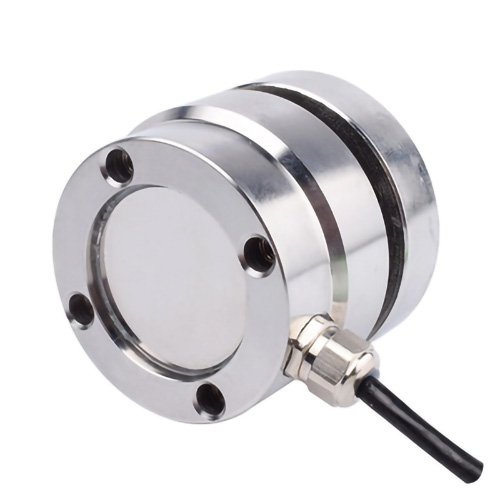

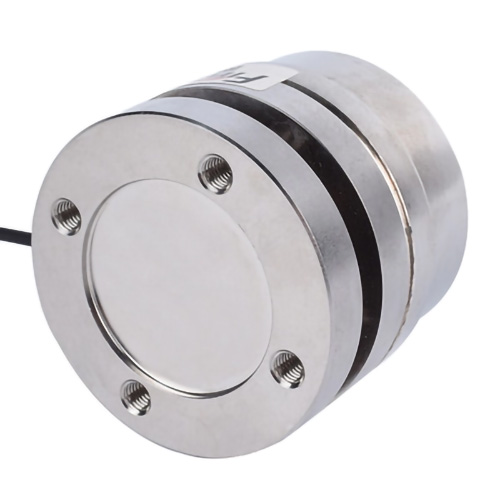

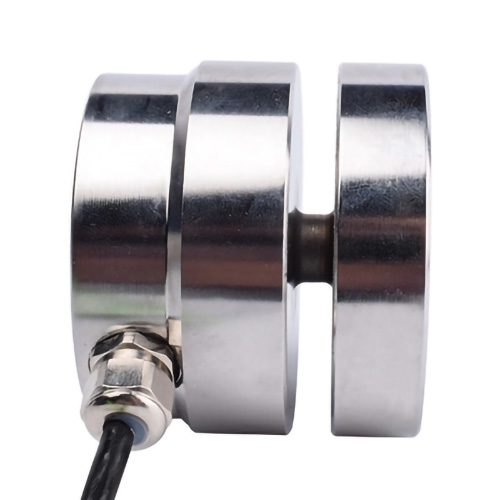

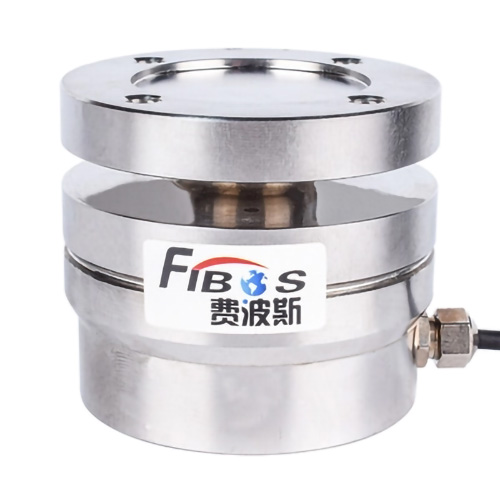

FA407
Features
| Product Name | Column Type Load Cell | Capacity | 0.5,1,2,3,5,10,20,50,100kN |
|---|---|---|---|
| Rated Output | 1.5±10%mV/V | Non-linearity | ≤0.1%F.S. |
| Repeatability | ≤0.05%F.S. | Material | Stainless Steel |
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product Name | – | Column Type Load Cell |
| Capacity | kN | 0.5, 1, 2, 3, 5, 10, 20, 50, 100 |
| Rated Output | mV/V | 1.5 ±10% |
| Zero Balance | mV/V | ±0.02 |
| Creep (30 min) | %F.S. | ≤0.1 |
| Non-linearity | %F.S. | ≤0.1 |
| Hysteresis | %F.S. | ≤0.1 |
| Repeatability | %F.S. | ≤0.05 |
| Input Impedance | Ω | 780 ±10 |
| Output Impedance | Ω | 700 ±5 |
| Temp. Effect on Output | %F.S./10°C | 0.05 |
| Temp. Effect on Zero | %F.S./10°C | 0.05 |
| Insulation Resistance | MΩ/100V(DC) | ≥5000 |
| Recommended Excitation | V | 5 |
| Maximum Excitation | V | 15 |
| Compensated Temp. Range | °C | -10 ~ 40 |
| Operating Temp. Range | °C | -20 ~ 60 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm | ⌀4 × 3000 |
| Weight | kg | 0.8 / 2 |
| Material | – | Stainless Steel |
