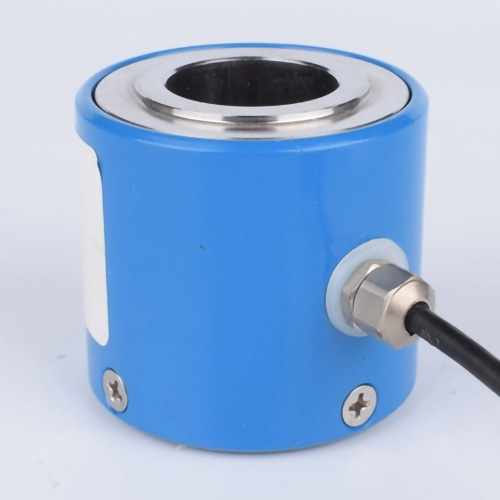

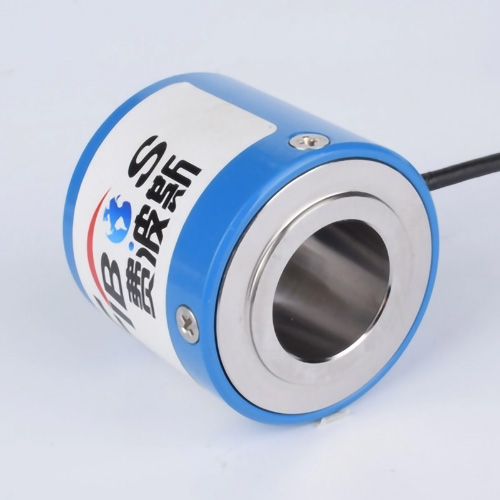

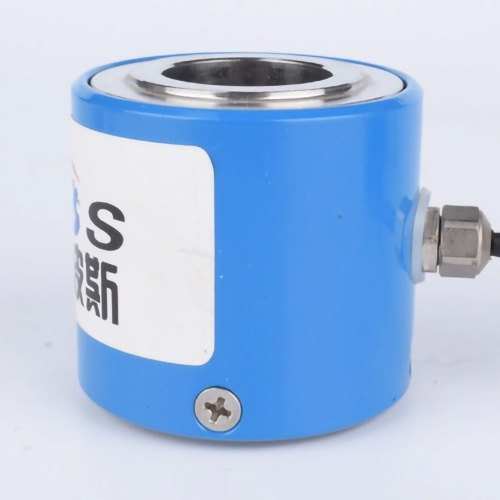

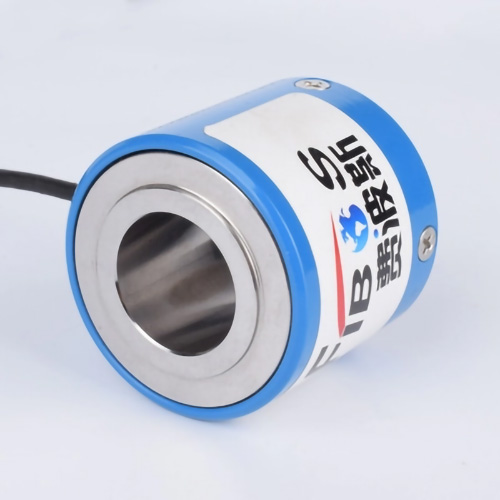

Models
FA438
Features
| Product Name | Column Type Load Cell | Capacity | 10000kN Or Customized |
|---|---|---|---|
| Non-linearity | 0.05%F.S. Or Customized | Repeatability | 0.05%F.S. Or Customized |
| Cable Size | ⌀5x4000mm Or Customized | IP Class | IP66 Or Customized |
Dimensions
Custom-made product
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product Name | – | Column Type Load Cell |
| Capacity | kN | 500 ~ 10000 or customized |
| Rated Output | mV/V | 2.0 ±10% |
| Zero Balance | mV/V | ±1% |
| Non-linearity | %F.S. | 0.05 or customized |
| Repeatability | %F.S. | 0.02 or customized |
| Recommended Excitation | V | 5 ~ 12 |
| Maximum Excitation | V | 15 |
| Compensated Temp Range | °C | -10 ~ 60 |
| Operating Temp Range | °C | -30 ~ 70 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm | ⌀5 × 4000 or customized |
| Material | – | Alloy Steel or customized |
| IP Class | – | IP66 or customized |
