Models

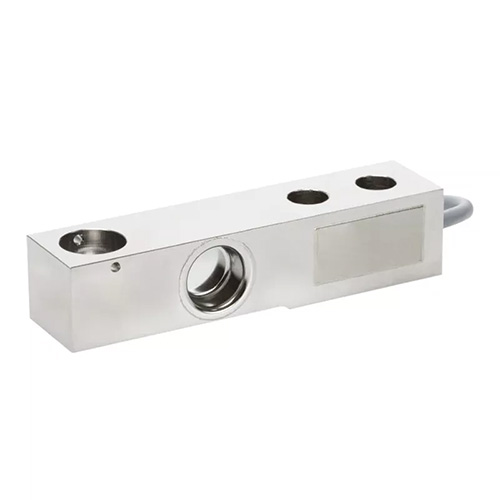

FA509
Features
Sensitivity：2.0±0.1%mV/V
Accuracy：0.017%F.S.
Material：Stainless Steel
Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | t | 0.22, 0.55, 1.1, 1.76, 2.2, 4.4 |
| Sensitivity | mV/V | 2.0 ± 0.1% |
| Zero Balance | mV/V | ±2 |
| Creep | %F.S. | 0.0166 |
| Non-linearity | %F.S. | 0.017 |
| Hysteresis | %F.S. | 0.017 |
| Repeatability | %F.S. | 0.017 |
| Input Impedance | Ω | 380 ± 15 |
| Output Impedance | Ω | 350 ± 5 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.014 |
| Temp. Effect on Zero | %F.S./10℃ | 0.012 |
| Insulation Resistance | MΩ / 100VDC | ≥ 500 |
| Recommended Excitation | V | 5 ~ 12 |
| Maximum Excitation | V | 15 |
| Compensated Temp. Range | ℃ | -10 ~ 60 |
| Operating Temp. Range | ℃ | -20 ~ 80 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm / length | Φ5.4 × 3m |
| Material | – | Stainless Steel |
