Models
FA559
Features

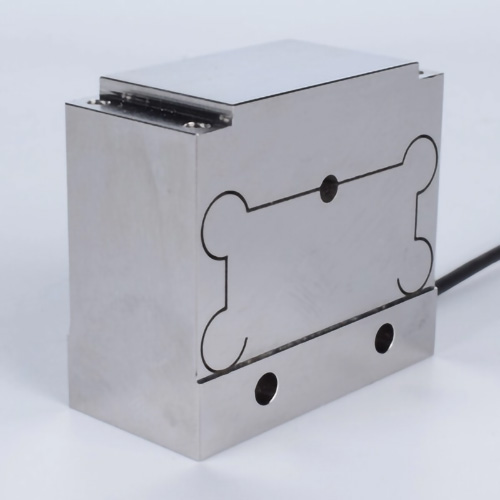

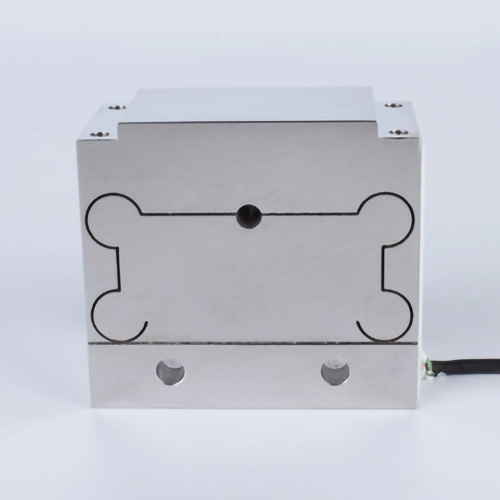

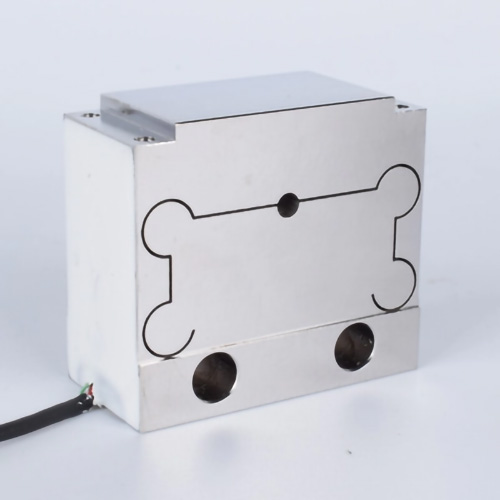

| Product Name | Single Point Weight Sensor | Capacity | 100,200,500kg Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.2%F.S. Or Customized | Non-linearity | ≤0.2%F.S. Or Customized |
| Hysteresis | ≤0.3%F.S. Or Customized | Repeatability | ≤0.2%F.S. Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Single Point Weight Sensor |
| Capacity | kg | 100, 200, 500 or customized |
| Rated output | mV/V | 1.0 ±20% or customized |
| Zero balance | %F.S. | ±1 or customized |
| Creep (30min) | %F.S. | ≤0.2 or customized |
| Non-linearity | %F.S. | ≤0.2 or customized |
| Hysteresis | %F.S. | ≤0.3 or customized |
| Repeatability | %F.S. | ≤0.2 or customized |
| Input resistance | Ω | 600~800 |
| Output resistance | Ω | 600~800 |
| Temp. effect on output | %F.S./10 ℃ | 0.05 |
| Temp. effect on zero | %F.S./10 ℃ | 0.05 |
| Insulation resistance | MΩ/100V (DC) | ≥5000 |
| Recommended excitation | V | 5~10 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10~60 |
| Operating temp range | ℃ | -20~80 |
| Safe load limit | %F.S. | 150 |
| Breaking load | %F.S. | 200 |
| Cable size | mm | ⌀2×3000 or customized |
| Weight | kg | 0.02 or customized |
| Material | – | Stainless steel or customized |
