Models

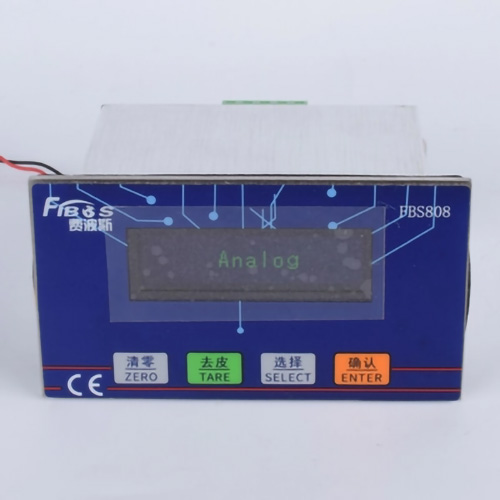

FBA808
Features
| Product Name | Load Cell Amplifier | Readability | 1/90000 Or Customized |
|---|---|---|---|
| Output Linear | <0.0017% Or Customized | Comprehensive Accuracy | <0.013%F.S. Or Customized |
| Weight Approx. | 0.55kg Or Customized | Material | Aluminum Alloy Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Load Cell Amplifier |
| Display | – | Dual-row LED display or customized |
| Readability | – | 1/90000 or customized |
| Output linearity | % | < 0.0017% or customized |
| Comprehensive accuracy | %F.S. | < 0.013% F.S. or customized |
| A/D Conversion speed | Times/sec | ≤ 1600 |
| Accept sensor range | mV/V | -3.6 ~ +3.6 mV/V |
| Input load | – | Up to 8 units of 350Ω sensors |
| Analog output specification | – | ±10V / 0 |
| Communication output | – | RS232 / RS485 (parameters optional) |
| I/O output specification | – | Relay / Transistor (hardware optional) |
| Temp. effect on output | ppm/°C | ≤ 10 ppm / °C or customized |
| Temp. effect on zero | μV/°C | ≤ 10 μV / °C or customized |
| Excitation voltage | VDC | 5 VDC |
| Power supply | VDC | 24 ± 5 VDC |
| Power waste | W | ≤ 10 W |
| Operating temperature range | ℃ | -20 ~ 70 ℃ |
| Weight (approx.) | kg | 0.55 kg or customized |
| Material | – | Aluminum alloy or customized |
| IP class | – | IP65 or customized |
