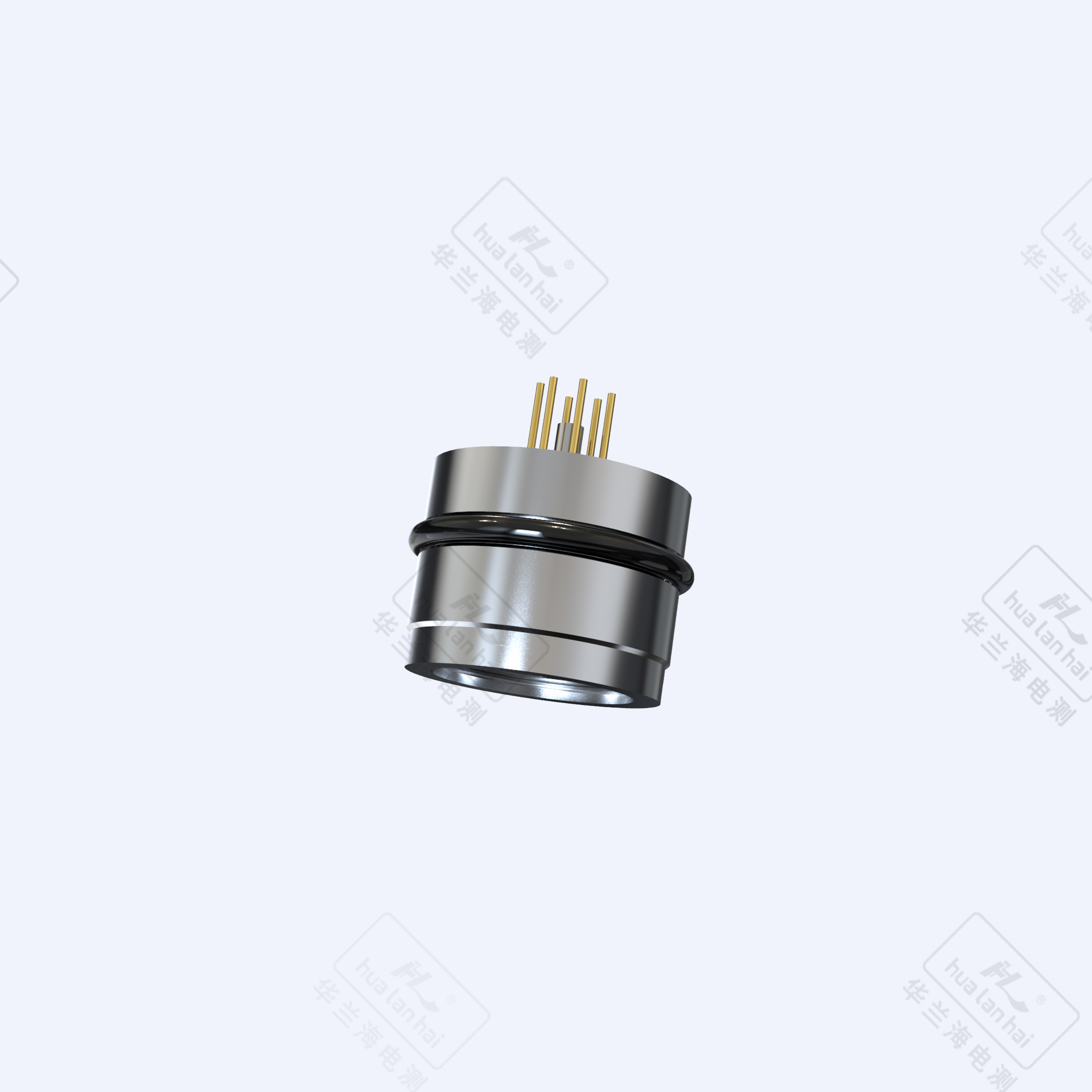

Model: PT306DB
Use: Pressure Measurement, Transmitter Assembly
Structural diagram
No Data
parameter
| Range | 35KPa~10MPa |
| Input | ≤2mA DC |
| Output | 1.5mA DC 35℃ |
| Zero point output | ±2mV DC |
| Full range output | ≥60mA DC |
| Temperature zero drift | ±0.75% FS ±1% FS |
| Temperature sensitivity drift | ±0.75% FS ±1% FS |
| Nonlinear | ±0.15% FS ±0.25% FS |
| Lagging | ±0.05% FS ±0.75% FS |
| Repeatability | ±0.05% FS ±0.75% FS |
| Compensation temperature | 0℃~70℃ |
| working temperature | -40℃~125℃ |
| Product size | ф 19×15 |
