Features
The load cell has a capacity of 10–500 kg, is made of stainless steel, features a shear beam design with IP68 protection, and is suitable for packaging scales, belt scales, platform scales, hopper and tank scales, as well as material weighing and control in chemical, pharmaceutical, food, and other industrial applications.

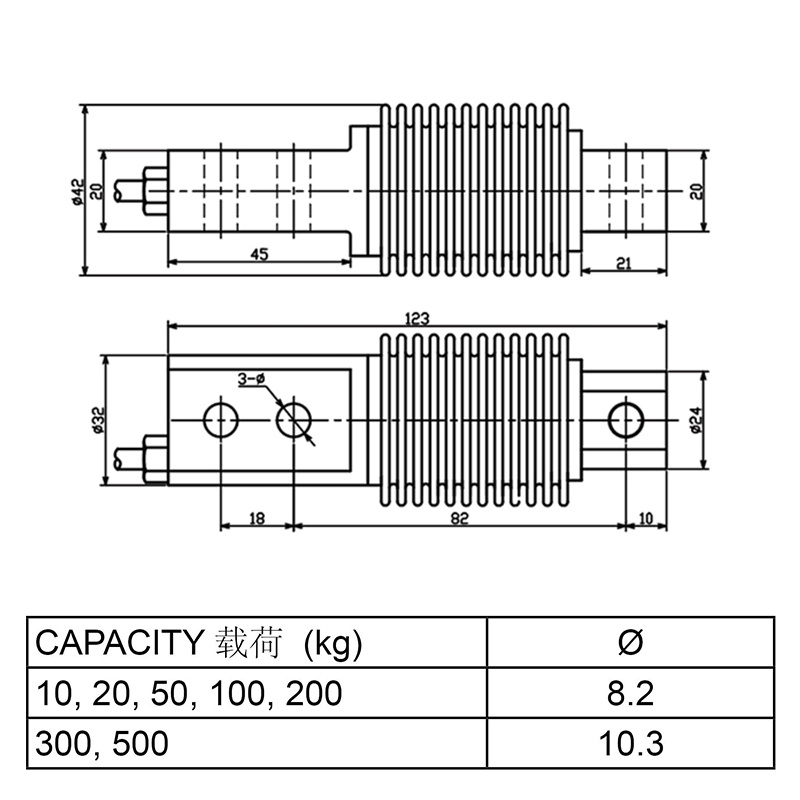

Dimensions
Specifications
Specifications: | ||
Rated Load | kg | 10,20,50,100,200,300,500 |
Rated Output | mV/V | 2.0±0.0050 |
Zero Balance | %R.O. | ±1 |
Creep after 30 minutes | %R.O. | ±0.02 |
Comprehensive Error | %R.O. | ±0.01 |
Compensated Temp.Range | ℃ | -10~+40 |
Operating Temp.Range | ℃ | -20~+70 |
Temp.effect/10℃ on output | %R.O/10℃ | ±0.02 |
Temp.effect/10℃ on zero | %R.O/10℃ | ±0.02 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 5 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±3 |
Insulation resistance | MΩ | =5000(50VDC) |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Stainless Steel | |
Degree of protection | IP68 | |
The length of the cable | m | 3 |
Tightening torque | N·m | 10kg-200kg:25N·m, 300kg-500kg:60N·m |
Wiring code | Ex: | Red:十Black: 一 |
Sig: | Green:+White:- |
