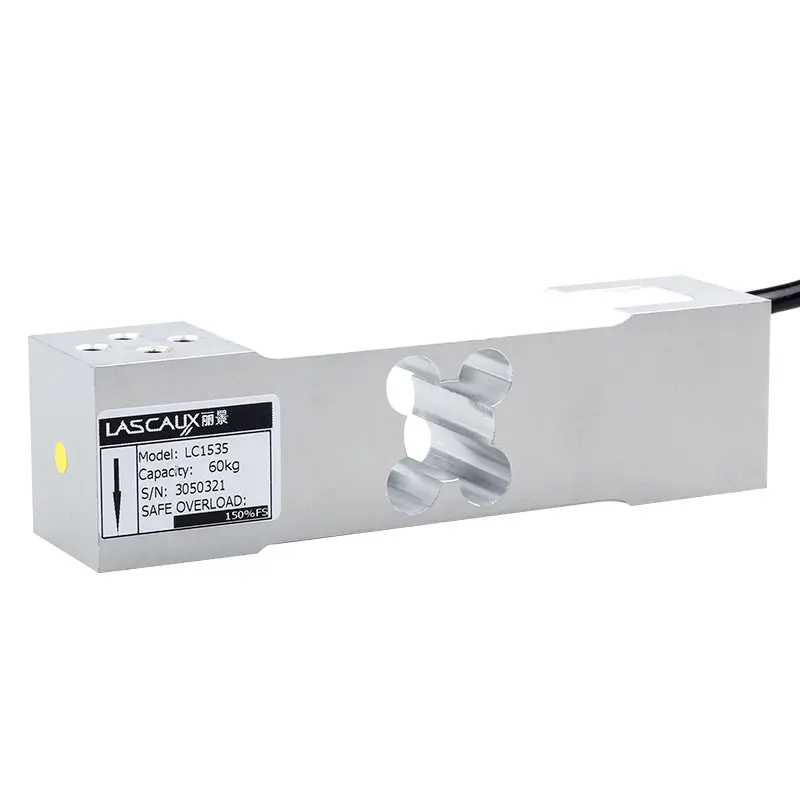

Features
- Capacity: 60~300kg
- Material: Aluminum alloy
- Type : Singie Point
- Protection rating: IP65
- Applications: Platform scales, batching scales, small hopper scales, packaging scales, belt scales, and weighing in food, pharmaceutical, and other industrial applications

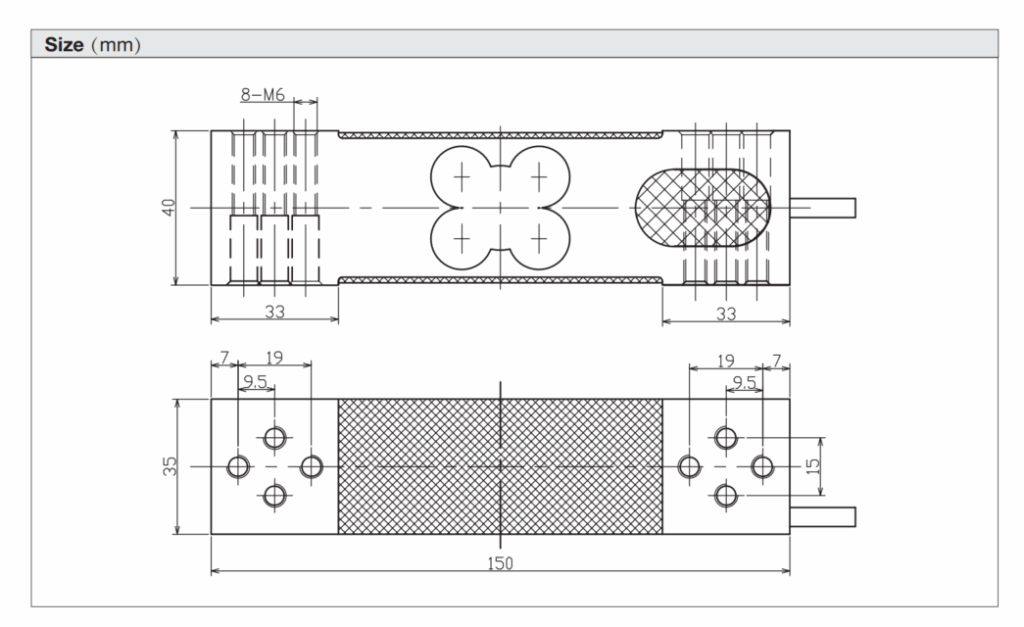

Dimensions
Specifications
Specification | Value | Unit |
Rated load | 60,100,150,200,250,300 | kg |
Rated output | 2.0±0.2 | mV/V |
Zero balance | ±1 | %R.O. |
Comprehensive Error | ±0.02 | %R.O. |
Zero output | ≤±5 | %R.O. |
Repeatability | ≤±0.02 | %R.O. |
Creep(30 minutes) | ≤±0.02 | %R.O. |
Normal operating temperature range | -10~+40 | ℃ |
Allowable operating temperature range | -20~+70 | ℃ |
Effect of temperature on sensitivity | ≤±0.02 | %R.O./10℃ |
Effect of temperature on zero point | ≤±0.02 | %R.O./10℃ |
Recommended excitation voltage | 5-12 | VDC |
Input impedance | 410±10 | Ω |
Output impedance | 350±3 | Ω |
Insulation Resistance | ≥5000（50VDC） | MΩ |
Safe overload | 150 | %R.C. |
limited overload | 200 | %R.C. |
Material | Aluminum | |
Protection Class | IP65 | |
Cable length | 2 | m |
Platform size | 400*400 | mm |
Tightening torque | 10 | N•m |
※Product specifications are subject to change without notice.
