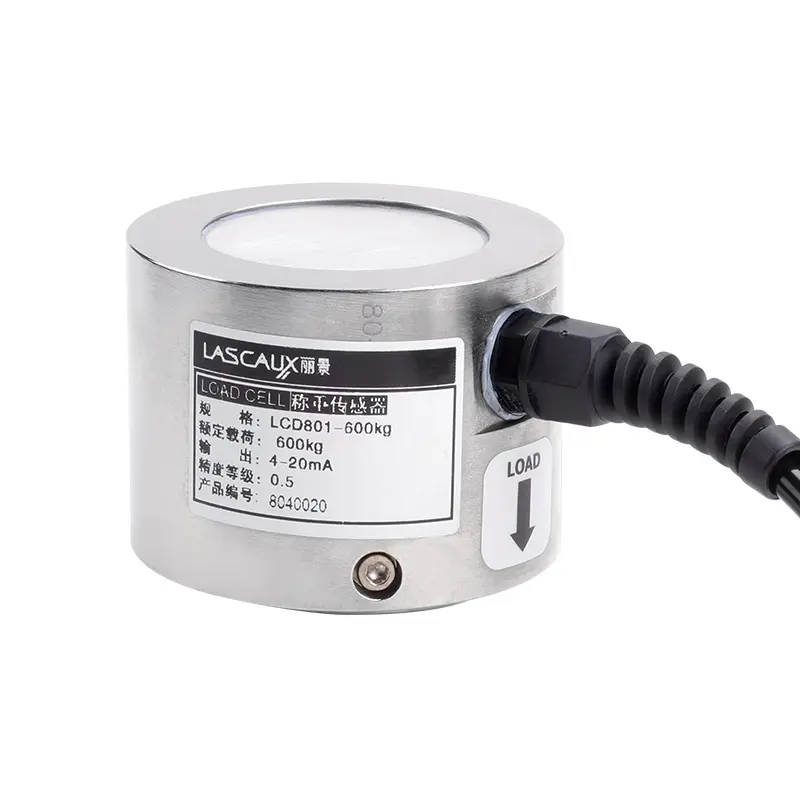

Features
- Capacity: 100-5,000 kg
- Material: High-quality alloy steel with nickel plating
- Type: Low-profile disk type
- Protection rating: IP67/IP68
- Applications: Weighing level meters / Suitable for force measurement and control of material levels
Dimensions
Specifications
Specifications: | ||
Rated Load | kg | 100,300,600,1200,2000,5000 |
Rated Output | mA | 4-20mA |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.3 |
Creep/30 minutes | %R.O. | ±0.05 |
Non-linearity | %R.O. | ±02 |
Hysteresis | %R.O. | ±02 |
Repeatability | %R.O. | ±0.05 |
Compensated Temp.Range | ℃ | -10~+40 |
Operating Temp.Range | ℃ | -20~+70 |
Temp effect/10℃on output | %R.O./10℃ | ±0.1 |
Temp effect/10℃ on zero | %R.O./10℃ | ±0.1 |
Recommended Exctation Voltage | VDC | 24 |
Insulation resistance | MΩ | =5000(50VDC) |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel/Stainless Steel | |
Degree of protection | P67/IP68 | |
The length ofthe cable | m | 6 |
Wiring code | Ex: | Red:+Black:- |
| Sig: | Green:+White:- |
| Shield: | Bare |
