Features
Capacity: 5–5000 kg
Material: Aluminum / Stainless Steel

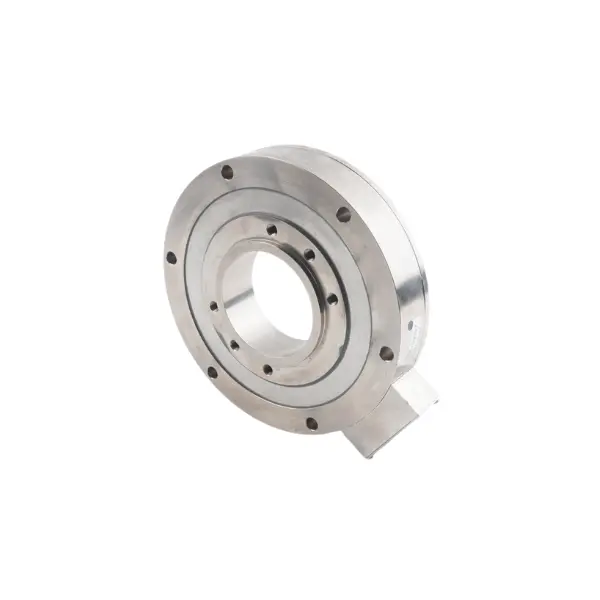

Type: Low-Profile Disk Type
Protection Class: IP66
Applications: Test machines, dynamometers, and force measurement devices
Dimensions
Specifications
Specification | ||
Rated load | 5,7.5,10,15,20,25,30,40,50 | t |
Rated output | 1.2-2 | mV/V |
Comprehensive Error | ±0.5 | %R.O |
Creep(after 30 minutes) | ±0.1 | %R.O. |
Repeatability | ±0.3 | %R.O. |
Normal operating temperature range | -10~+40 | ℃ |
Allowable operating temperature range | -20~+70 | ℃ |
Effect of temperature on zero point | ±0.2 | %R.O./10℃ |
Effect of temperature on sensitivity | ±0.2 | %R.O./10℃ |
Recommended exctation voltage | 10 | VDC |
Input impedance | 700±10 | Ω |
Output impedance | 700±5 | Ω |
Insulation Resistance | ≥3000(50VDC) | MΩ |
Safe overload | 120 | %R.C. |
Limit overload | 200 | %R.C. |
Material | Alloy stee | |
Protection Class | IP66 | |
Cable length | 5 | m |
※ Product specifications are subject to change without prior notice.
