Features

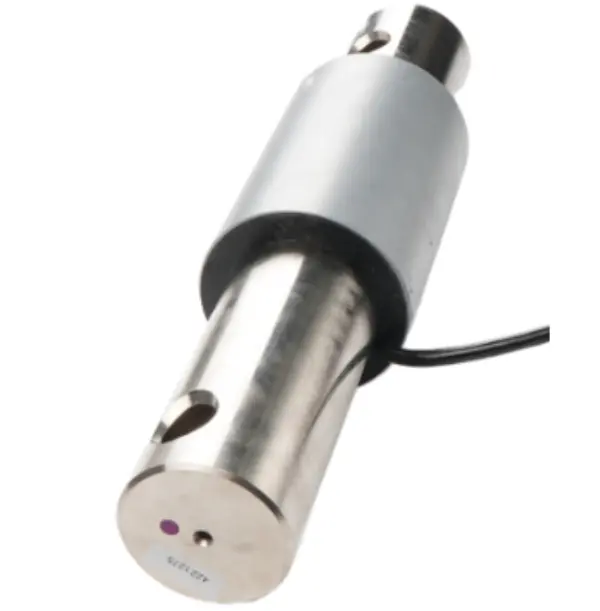

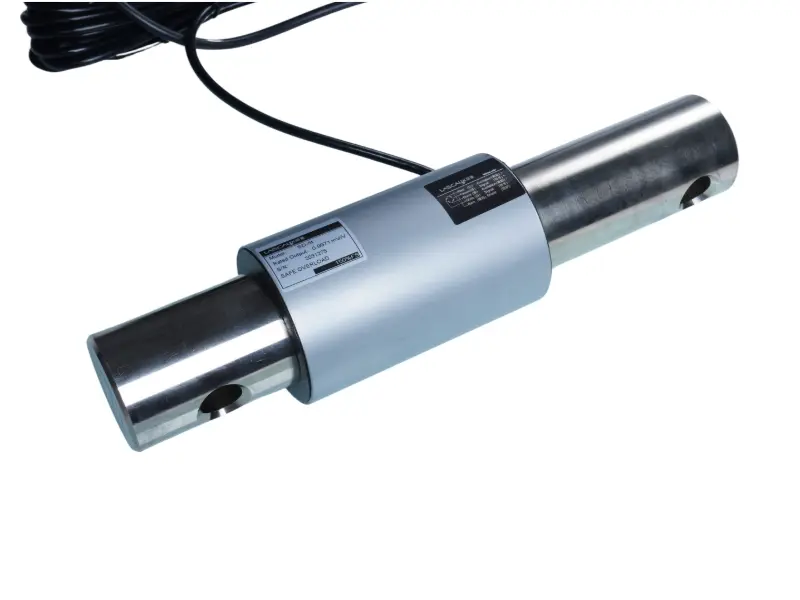

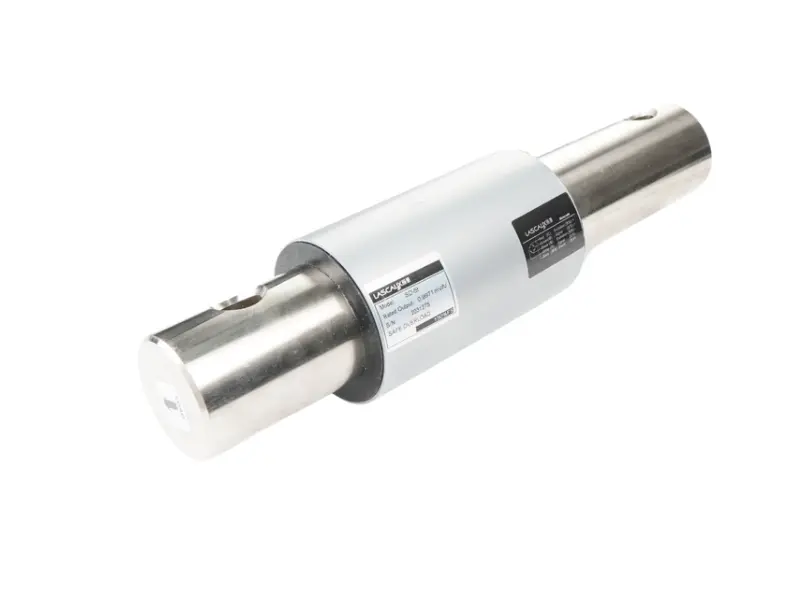

- Capacity: 5T, Material: High-quality alloy steel with nickel plating, Type: S Beam, Protection Rating: IP67, Application: Ideal for towable TMR total mixed feed mixers, hopper and tank weighing, and raw material weighing management in chemical, food, pharmaceutical, and other industrial sectors.

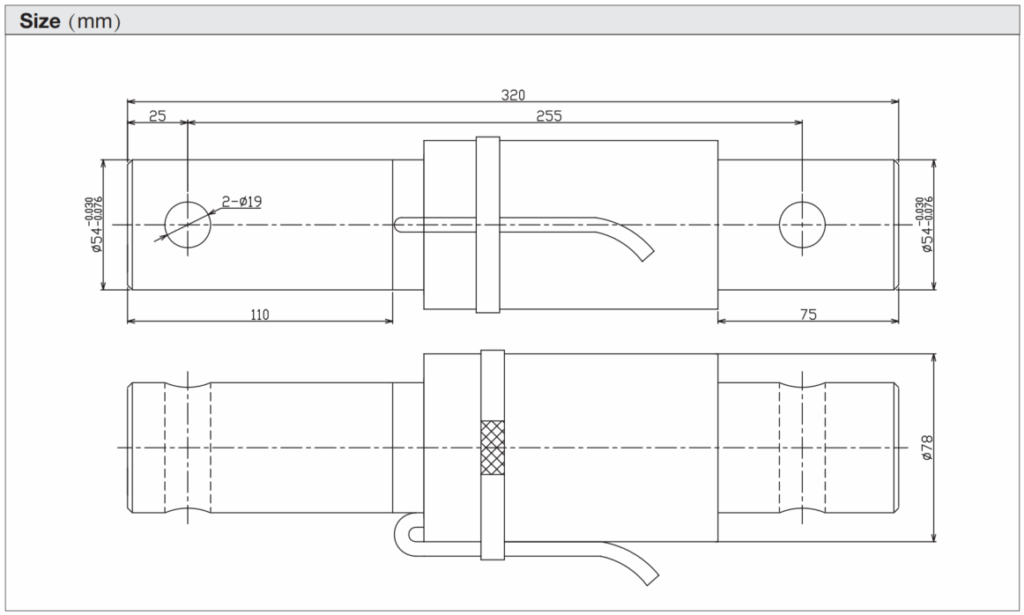

Dimensions
Specifications
Rated load | 5 | t |
Rated output | 2±0.0050 | mV/V |
Zero balance | ±1 | %R.O. |
Comprehensive Error | ±0.02 | %R.O. |
Creep (after 30 minutes) | ±0.02 | %R.O. |
non-linearity | ±0.02 | %R.O. |
Hysteresis | ±0.02 | %R.O. |
Repeatability | ±0.02 | %R.O. |
Normal operating temperature range | -10~+40 | ℃ |
Allowable operating temperature range | -20~+70 | ℃ |
Effect of temperature on zero point | ±0.02 | %R.O./10℃ |
Effect of temperature on sensitivity | ±0.02 | %R.O./10℃ |
Recommended excitation voltage | 5-12 | VDC |
Input impedance | 380±10 | Ω |
Output impedance | 350±5 | Ω |
Insulation Resistance | ≥5000(50VDC) | MΩ |
Safe overload | 150 | %R.C. |
Limit overload | 300 | %R.C. |
Material | Alloy Steel | |
Protection Class | IP66 | |
Cable length | 0.1-2t:3 3t-5t:5 7.5t-10t:6.5 | m |
Tightening torque | 0.1-2t:98 3t-5t:275 7.5t-10t:750 | N·m |
※Product specifications are subject to change without notice.
