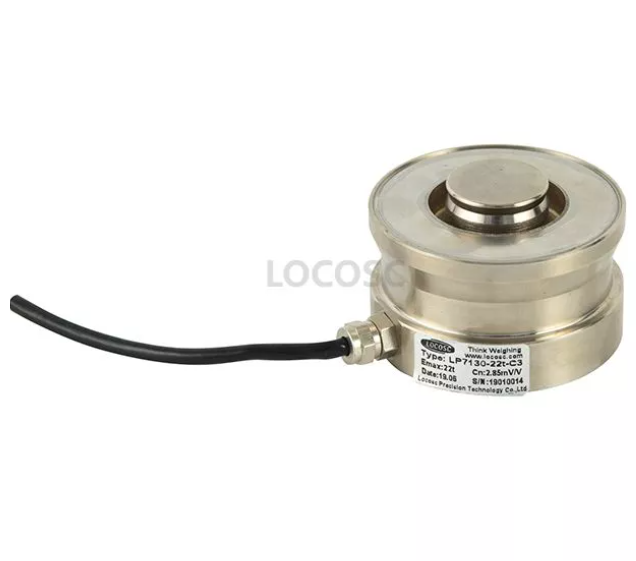

LP7130 Compression Load Cell
Rated Capacity: 1/2.2/3.3/4.7/10/15/22/33/47/68/100/150t
Accuracy Class: D1
Rated Output: 2.85±0.005 mV/V
Total error: ±0.05%F.S
Creep(30min): ±0.03%F.S
Input Resistance: 1450±5Ω
Output Resistance: 1402±5Ω
Operating Temperature: -10~+40℃
Safe Overload: 150%F.S
Destructive Load: 200%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 3~16m 4 wires with shield
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Alloy Steel or Stainless steel,IP67
Application for: hopper scale,silo scale,weighing module etc.
