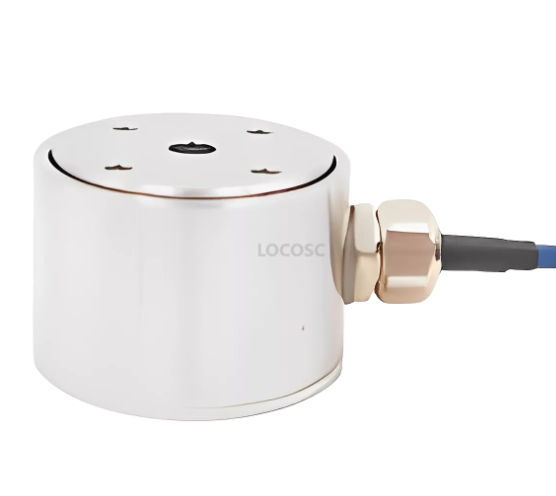

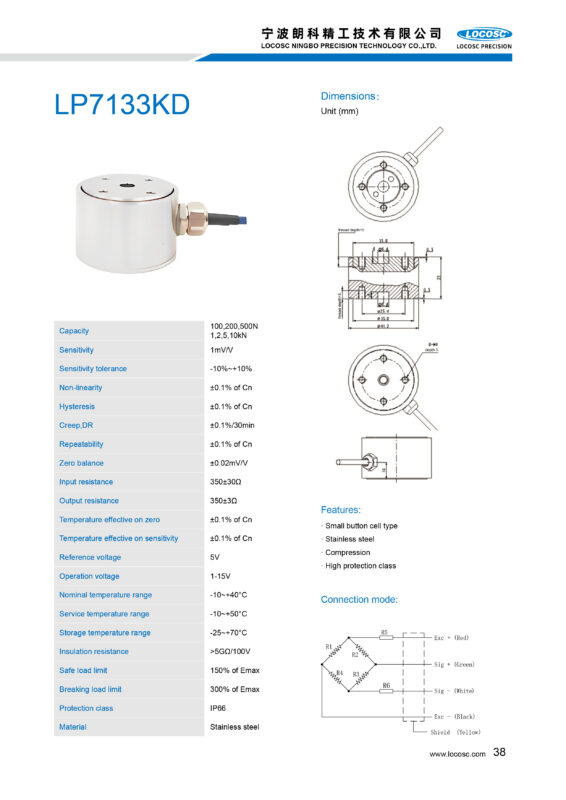

LP7133KD New Design Compression Load Cell
| Rated Capacity | 100,200,500N 1,2,5,10kN | |
| Rated Output | 1.0mv/v | |
| Non-linearity | ±0.1% of Cn | |
| Creep（30min） | ±0.1%/30min | |
| Input Impedance | 350±30Ω | |
| Output Impedance | 350±3Ω | |
| Operation Temperature | -10~+40℃ | |
| Safe overload | 150% of Emax | |
| Protection class | IP66 | |
| Destructive Load | 300%F.S | |
