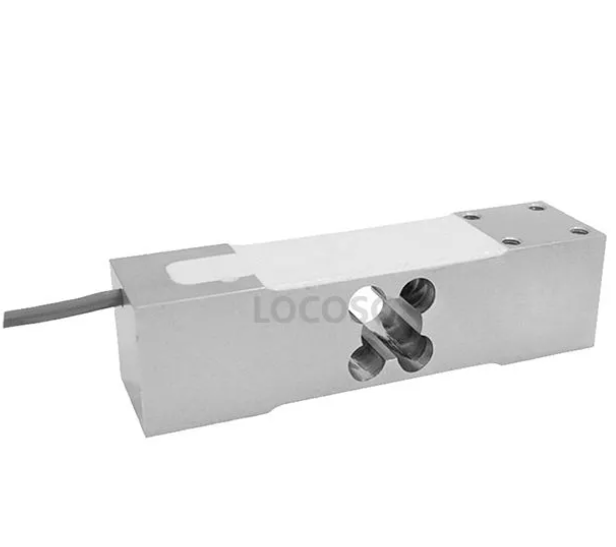

LP7165 Single Point Load Cell
Rated Capacity: 50/60/80/100/150/200/250/300/350/400/500kg
Accuracy Class: C3
Rated Output: 2.0±0.2mV/V
Total error: ±0.02%F.S
Creep(30min): ±0.016%F.S
Input Resistance: 406±10Ω
Output Resistance: 350±3Ω
Operating Temperature: -10~+40℃
Safe Overload: 120%F.S
Destructive Load: 150%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 3m 4 wires with shield
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Aluminum,IP65
Application for: Bench/Counting scales,check weighing etc.
