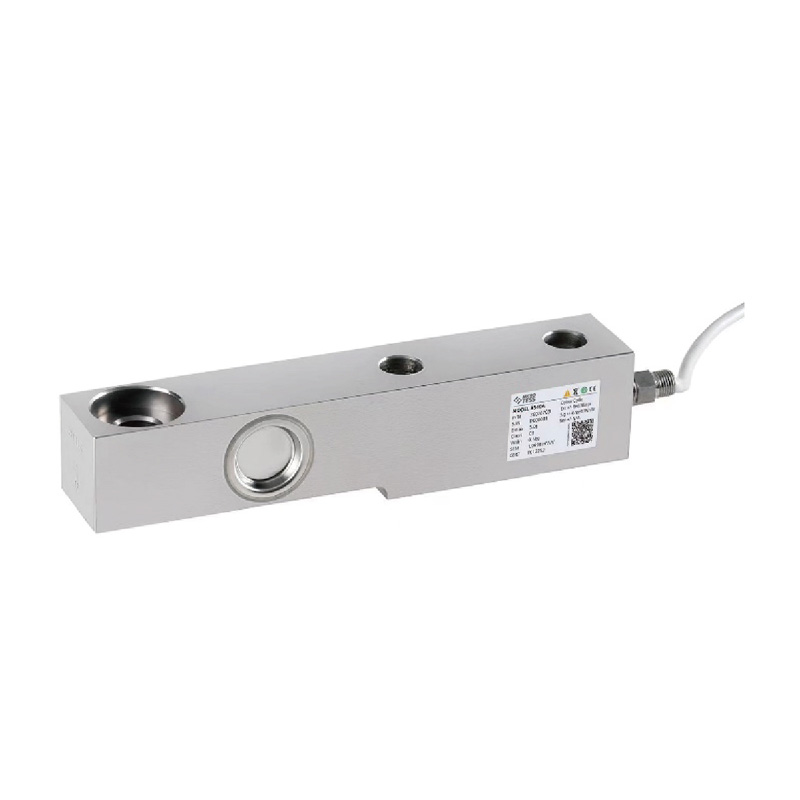

Models
B540-1t, B540-2t, B540-3t, B540-5t, B540-7.5t, B540-10t
Features
- Capacity: 1–10 t
- Material: Alloy steel, optional stainless steel
- Type: Single-Ended Beam
- Protection Rating: IP68
Suitable for high-capacity industrial platform scales and hopper scales.
Dimensions
| Capacity | L | L1 | L2 | L3 | L4 | D1 | D2 | D3 | H | H1 | W |
| 1~2t | 203 | 95 | 22 | 98 | 64 | 31.7 | 15.8 | 13 | 43 | 30.4 | 36.5 |
| 3t | 203 | 95 | 22 | 98 | 64 | 31.7 | 15.8 | 15 | 43 | 30.4 | 36.5 |
| 5~7.5t | 235 | 110 | 22 | 124 | 66 | 38.0 | 22.2 | 20 | 52 | 30.0 | 47.5 |
| 10t | 279 | 133 | 32 | 140 | 82 | 47.7 | 32.0 | 28 | 67 | 20.0 | 60.0 |

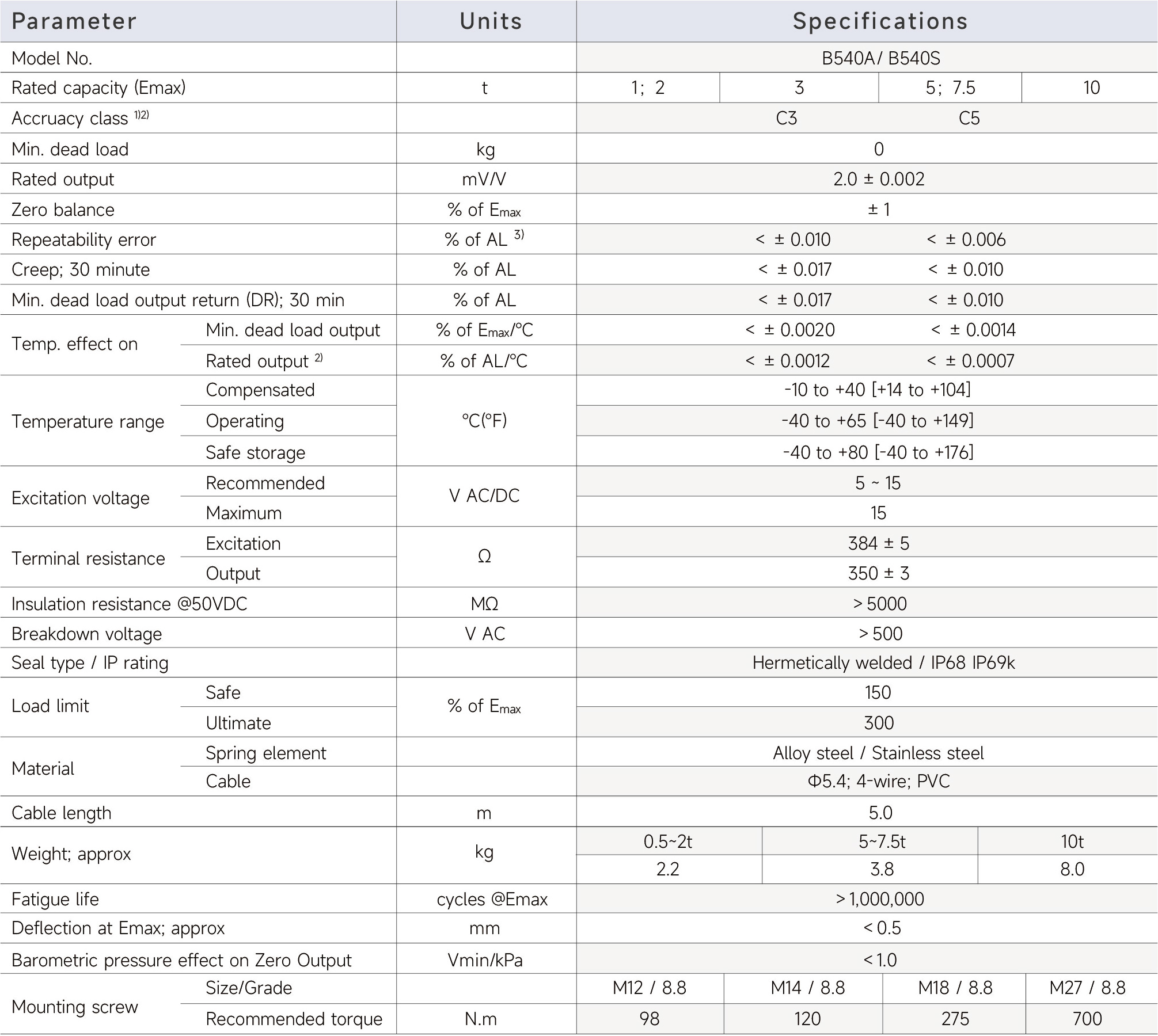

Specifications
