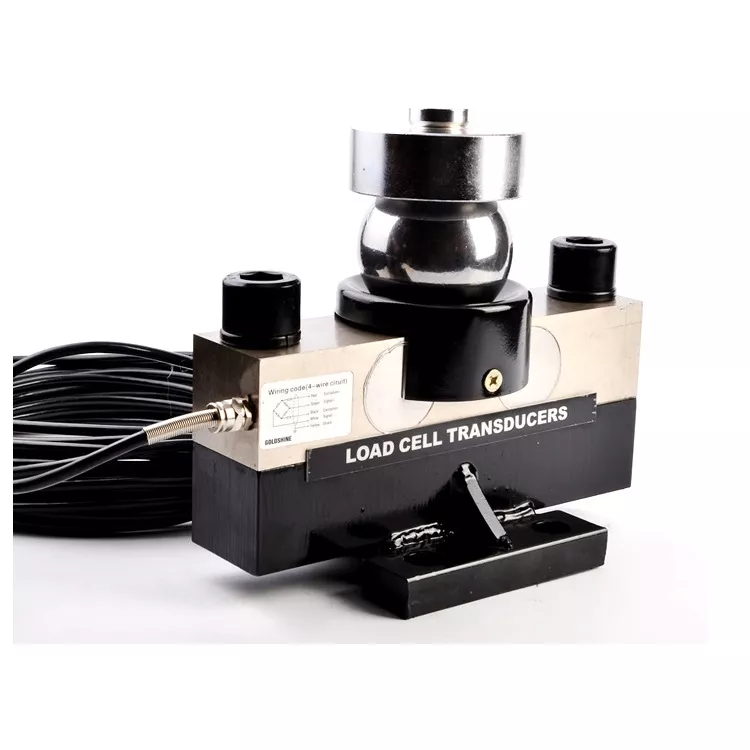

LC110 Center- Loaded Shear Beam Load Cells Double Ended Shear Beam Load Cell
Technical Parameter:
| Rated Load: | 5/10/20/25/30/40/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150,120 (40~50t)%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300,200(40~50t)%F.S |
| Creep Error(30min): | ±0.01% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
| Input Resistance: | 750±5Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=13m |
| Output Resistance: | 703±2Ω,703±5 Ω(L≥15m) | Mode Of Connection: | Red(Input+),Black(Input-),
Green(Output+),White(Output-) |
| Product name | LC110 Center- Loaded Shear Beam Load Cells Double Ended Shear Beam Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
