Product Description
Product Description::

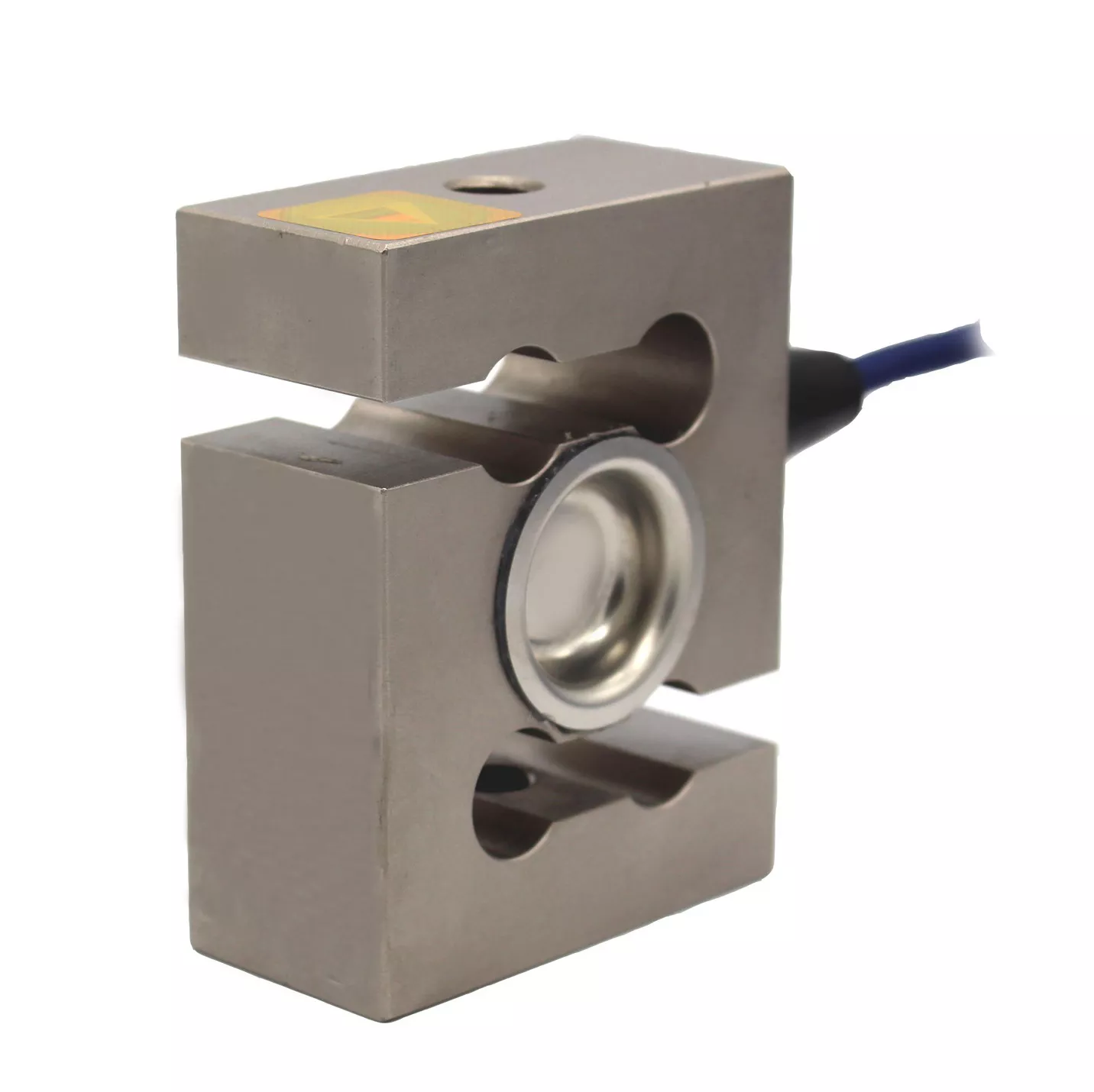

◎S-Type load cell;
◎Stainless steel construction;
◎Hermetically sealed;
◎Easy to install, stable & reliable;
◎Suitable for tension measurement, batching systems, blending & mixing systems, belt scales, etc;

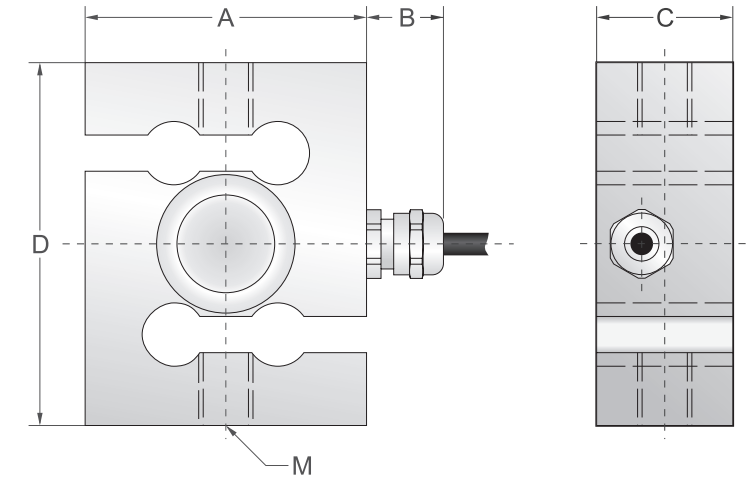

Dimension:
| Cap. |
A |
B |
C |
D |
M |
| (kg) |
(mm) |
| 200kg |
62 |
17 |
30 |
80 |
M10×1.0 |
| 500kg |
62 |
17 |
30 |
80 |
M12×1.0 |
| 1t |
70 |
17 |
30 |
90 |
M12×1.0 |
| 2t |
70 |
17 |
45 |
90 |
M16×1.5 |
| 3t |
80 |
17 |
50 |
100 |
M18×1.5 |
| 5t |
92 |
17 |
58 |
130 |
M20×2.0 |
Technical Parameter:
| Rated Output |
2.0mV/V ±0.1% |
Safe Temp. Range |
-10ºC to + 70ºC |
| Zero Balance |
±1% of FS |
Temp. Compensated |
-10ºC to + 40ºC |
| Creep after 30 minutes |
±0.03% of FS |
Safe Overload |
1.5 |
| Nonlinearity |
±0.03% of FS |
Input Impedance |
387 ohm ± 20 ohm |
| Hysteresis |
±0.03% of FS |
Output Impedance |
350 ohm ± 5 ohm |
| Repeatability |
±0.03% of FS |
Insulation Resistance |
≥5000 M ohm (50V DC) |
| Temp. effect on output |
≤0.002% of FS/ºC |
Rated Excitation |
10V DC/AC |
| Temp. effect on zero |
≤0.002% of FS/ºC |
Maximum Excitation |
15V DC/AC |
| Wire Length |
5m |
Material |
Alloy/stainless steel |
| Product name |
LC2003 High-Quality Inline Load Cells Transcell BSS-TSZ Load Cell |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
