LC2004 In-line Load Cell S-type Load Cell Force Sensor
Product Description
Product Description: :

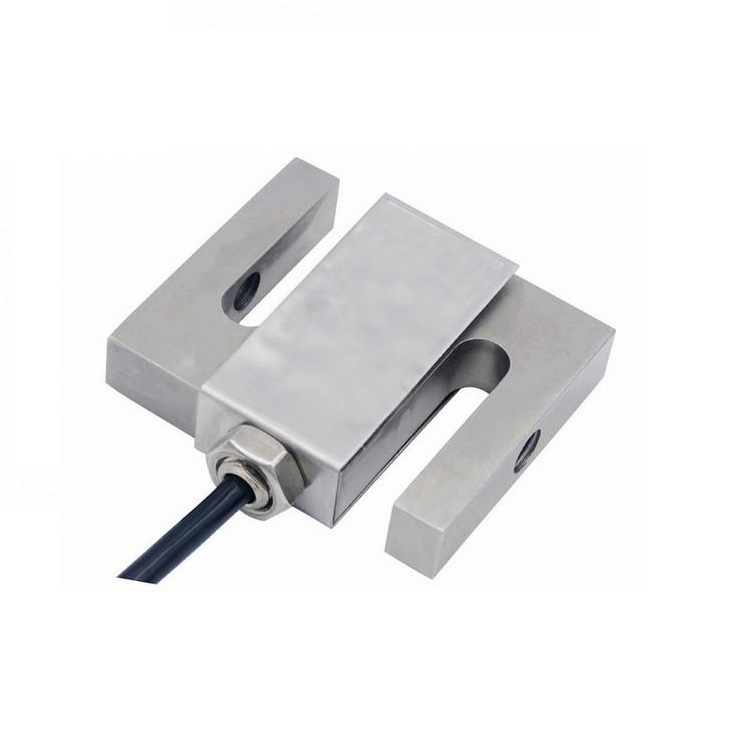

The lLC2004 is a multipurpose stainless steel S-type load cell which can be used in tension or compression. This product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, and process weighing applications.

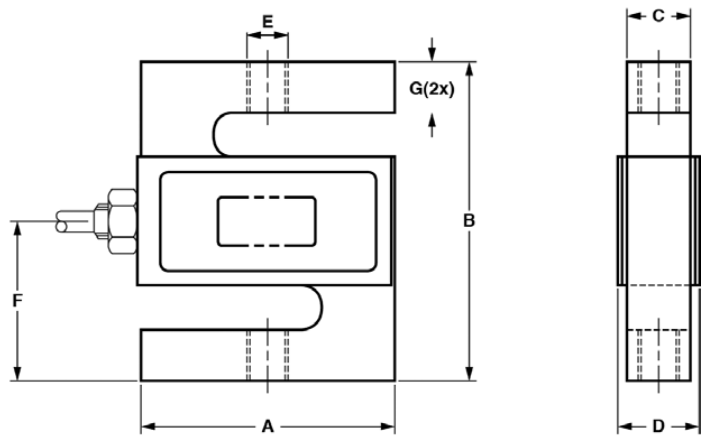

Dimension:
Cap (kg)
50/100kg
250,500
1000
2500
5000
7500
10000
Cap (lbs)
50/100/00/300
500-1.5k
2k,2.5k
3k*,5k
10k
15000
20000
A
50.8
50.8
50.8
76.2
74.7
87.4
112.8
B
61.0
61.0
61.0
99.1
99.1
139.7
177.8
C
11.7
18
24.4
24.4
30.7
37.1
42.9
D max
16.5
22.9
29.2
29.2
35.6
41.4
47.8
E(kg)
M8×1.25-6H
M12x1.75-6H
M20x1.5-6H8
M24×2-6H
M30x2-6H
E(Ibs)
1/4-28UNF-2B
1/2-20UNF-2B
3/4-16UNF-2B
1*-14UNS-2B
11/4-12UNF-2B
F
30.5
30.5
30.5
49.5
49.3
69.9
88.9
G
8.9
8.9
8.9
14
15.7
22.4
31.8
*3k lb version has 1/2-20UNF-2B holes.
Technical Parameter:
Capacity
50/100/250/500/1000/2500/5000/7500/10000kg
50/75/100/150/200/250/300/ 500/750lb+ 1/1.5/2/3/5/10/15/20klb
Rated Output
2.0mV/V ±0.1%
Safe Temp. Range
-10ºC to + 70ºC
Zero Balance
±1% of FS
Temp. Compensated
-10ºC to + 40ºC
Creep after 30 minutes
±0.03% of FS
Safe Overload
1.5
Nonlinearity
±0.03% of FS
Input Impedance
350 ohm ± 20 ohm
Hysteresis
±0.03% of FS
Output Impedance
350 ohm ± 5 ohm
Repeatability
±0.03% of FS
Insulation Resistance
≥5000 M ohm (50V DC)
Temp. effect on output
≤0.002% of FS/ºC
Rated Excitation
10V DC/AC
Temp. effect on zero
≤0.002% of FS/ºC
Maximum Excitation
15V DC/AC
Wire Length
6m
Material
Alloy/stainless steel
Product name
LC2004 In-line Load Cell S-type Load Cell Force Sensor
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
Custom Design
Welcome
Form of sale
Factory supply
