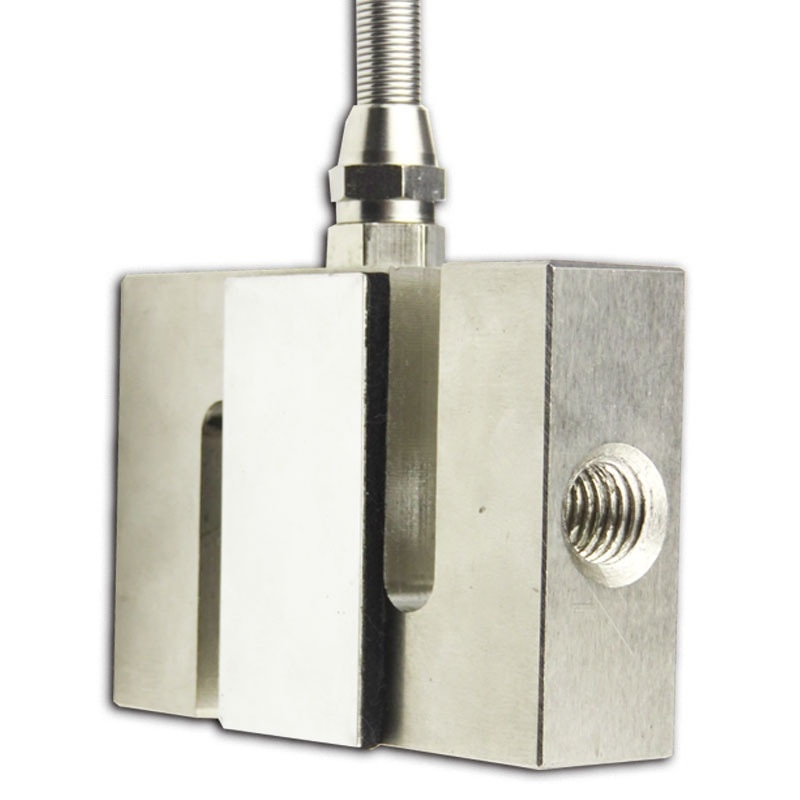

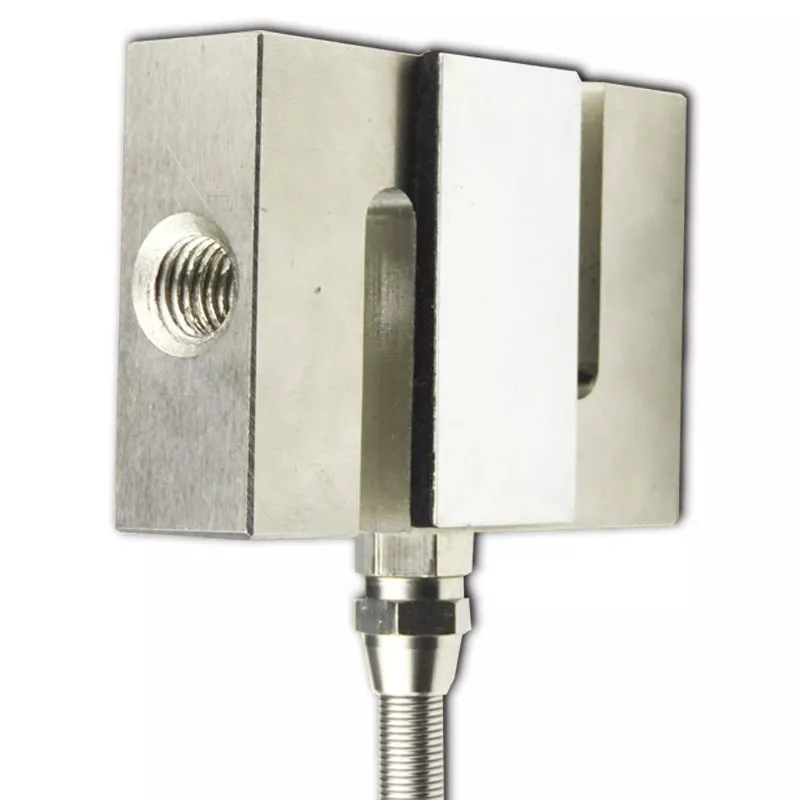

SAINTBOND / LC2005 Tension Links Inline S-Type Load Cell Steel
LC2005 Tension Links Inline S-Type Load Cell Steel
Product Description
Product Description: :
S type load cell, tension and compression, good output symmetry, compact structure, simply to install, full range of capacities. Suitable for electromechanical scale, crane scale, hopper scale and various special scales.

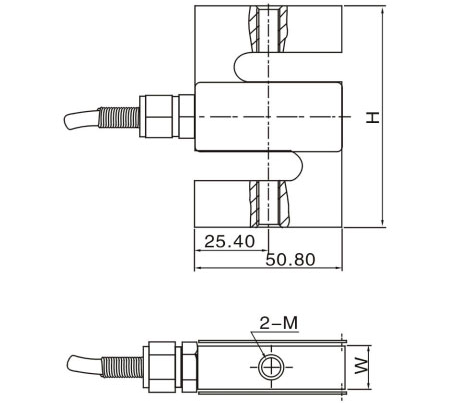

Dimension:
Cap.(kg)
5
10
25
50
100
150
200
250
300
500
1000
W(mm)
13
13
13
13
19
19
19
19
19
19
38
M(mm)
M8
M8
M8
M8
M12
M12
M12
M12
M12
M12
M16
H(mm)
64
64
64
64
76.2
76.2
76.2
76.2
76.2
76.2
76.2
Technical Parameter:
Capacity
5/10/25/50/100/150/200/250/300/500/1000kg
Rated Output
2.0mV/V ±0.1%
Safe Temp. Range
-10ºC to + 70ºC
Zero Balance
±1% of FS
Temp. Compensated
-10ºC to + 40ºC
Creep after 30 minutes
±0.02% of FS
Safe Overload
1.5
Nonlinearity
±0.02% of FS
Input Impedance
380ohm ± 10ohm
Hysteresis
±0.02% of FS
Output Impedance
350ohm ± 5ohm
Repeatability
±0.02% of FS
Insulation Resistance
≥5000 M ohm (50V DC)
Temp. effect on output
≤0.002% of FS/ºC
Rated Excitation
10V DC/AC
Temp. effect on zero
≤0.002% of FS/ºC
Maximum Excitation
15V DC/AC
Wire Length
1m
Material
Alloy/stainless steel
Product name
LC2005 Tension Links Inline S-Type Load Cell Steel
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
Custom Design
Welcome
Form of sale
Factory supply
