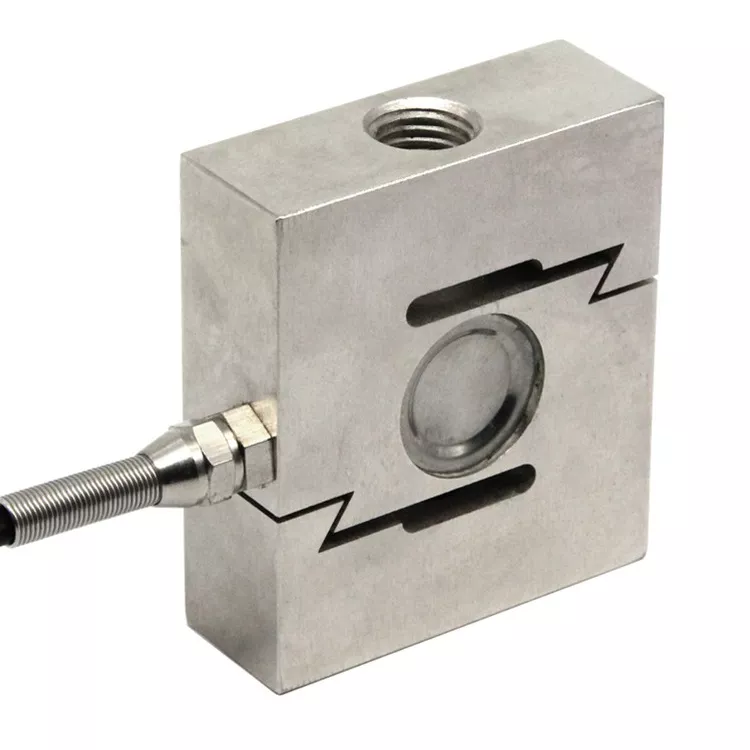

LC225 Tension Load Cell Price Tension And Compression Load Cells
Dimensions:Unit: mm
Technical Parameter:
| Rated Load: | 0.5/1/2/3/4/5/6/7.5/10/15/20t | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Zero Balance: | ±1 % F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy /Stainless Steel |
| Output Resistance: | 352±2Ω | Cable: | Length=L:3m~5m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Product name | LC225 Tension Load Cell Price Tension And Compression Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
