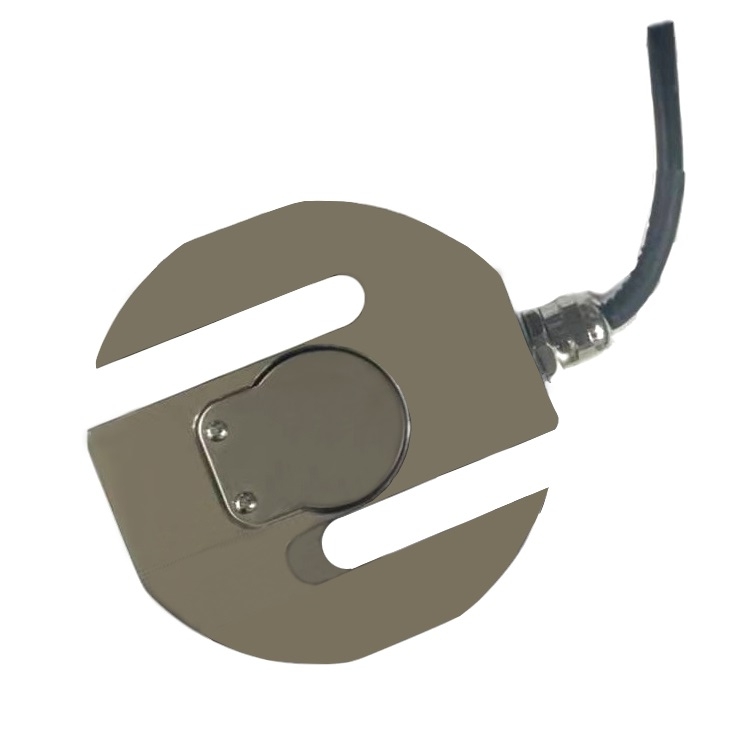

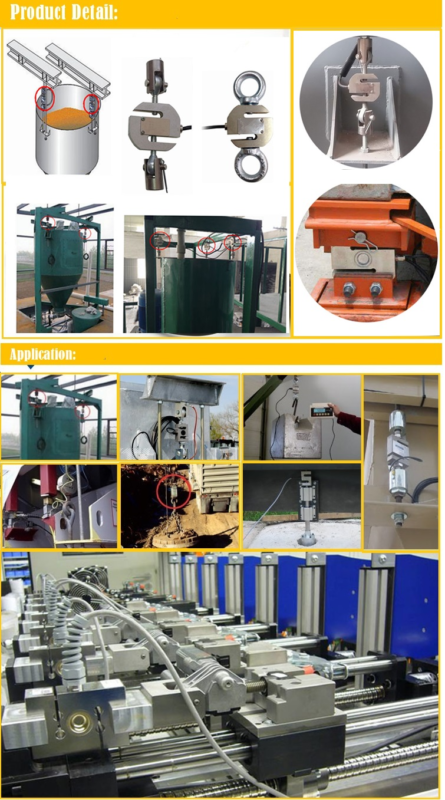

The LC2299 S-Type Tension Load Cell (also S-Beam Load Cell) is available with maximum capacities ranging from 20kg to 10t. Due to its design this S Load Cell permits convenient weighing of suspended tanks or use in conveyor, batching or hybrid scales. The main field of applications is in gravimetric level measurement. Hermetic encapsulation ensures the IP67/IP68 degree of protection. Applications in the chemical industry or mills are also possible with the optionally available versions.
Technical Parameter:
Rated Load:
20/100/200/300/500/750kg/1/2/3/5/10t
Sensitivity:
(2.0±0.1%) mV/V
Operating Temp.Range:
-30~+70℃
Combined Error:
±0.03% F.S
Maximum Safe Over Load:
150%F.S
Creep Error (30min):
±0.03% F.S
Ultimate Over Load:
200%F.S
Zero Balance:
±1% F.S
Recommend Excitation Vol.:
10~12V DC
Temp. Effect On Zero:
±0.05% F.S/10℃
Maximum Excitation Vol.:
15V DC
Temp. Effect On Span:
±0.05% F.S/10℃
Sealing Class:
IP67
Input Resistance:
400±30Ω
Element Material:
Alloy /Stainless Steel
Output Resistance:
350±3.5Ω
Cable:
Length=L:3m
Insulation Resistance:
≥5000MΩ
Citation:
GB/T7551-2008/ OIML R60
Product name
LC2299 Fastener Torque Tension Load Cell S Type Load Cells
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
