SAINTBOND / LC2302 High-Quality Loadcells Custom S-Type Tension Compression Loadcell
LC2302 High-Quality Loadcells Custom S-Type Tension Compression Load cell
Product Description
Product Description::

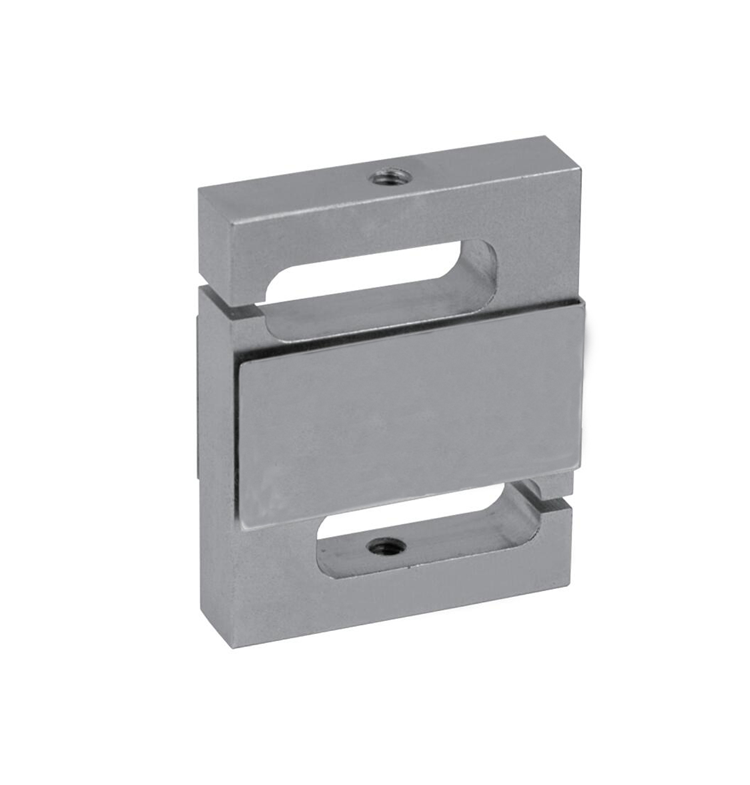

◎S-Type load cell;
◎Aluminum ,alloy and stainless steel construction;
◎Easy to install, stable & reliable;
◎Suitable for tension measurement, batching systems, industrial scales and package systems, etc;

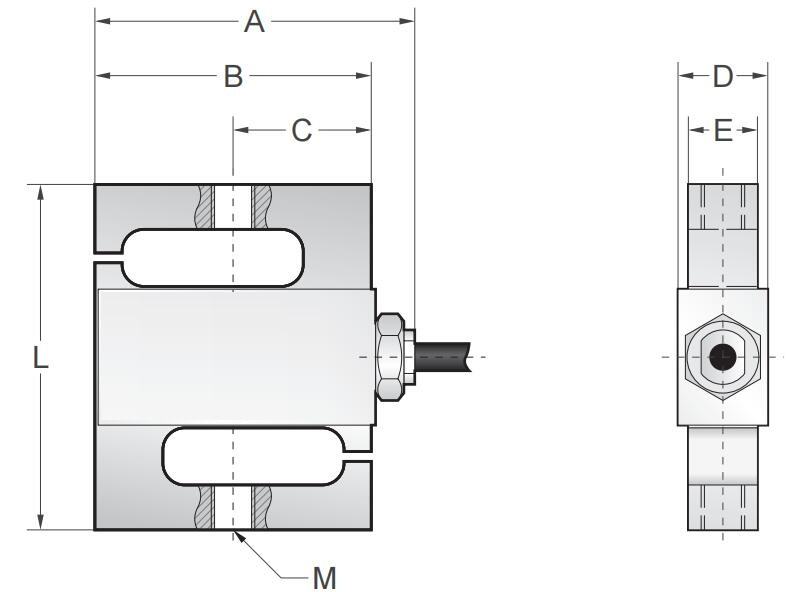

Dimension:
| Cap. |
A |
B |
C |
D |
E |
L |
M |
| (lb) |
mm |
| 50~100lb |
58.8 |
50.8 |
2×25.4 |
16.5 |
12.7 |
63.5 |
1/4-28 UNF |
| 25~50kg/250lb |
58.8 |
50.8 |
2×25.4 |
16.5 |
12.7 |
63.5 |
M8×1.25/M6 |
Technical Parameter:
| Rated Output |
2.0mV/V ±1% |
Safe Temp. Range |
-10ºC to + 70ºC |
| Zero Balance |
±3% of FS |
Temp. Compensated |
-10ºC to + 40ºC |
| Creep after 30 minutes |
±0.03% of FS |
Safe Overload |
150% |
| Nonlinearity |
±0.03% of FS |
Input Impedance |
410 ohm ± 5ohm |
| Hysteresis |
±0.03% of FS |
Output Impedance |
350 ohm ± 3ohm |
| Repeatability |
±0.03% of FS |
Insulation Resistance |
≥5000 M ohm (50V DC) |
| Temp. effect on output |
≤0.002% of FS/ºC |
Rated Excitation |
10V DC/AC |
| Temp. effect on zero |
≤0.002% of FS/ºC |
Maximum Excitation |
15V DC/AC |
| Wire Length |
6m |
Material |
Alluminum, /stainless steel |
| Product name |
LC2302 High-Quality Loadcells Custom S-Type Tension Compression Loadcell |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
