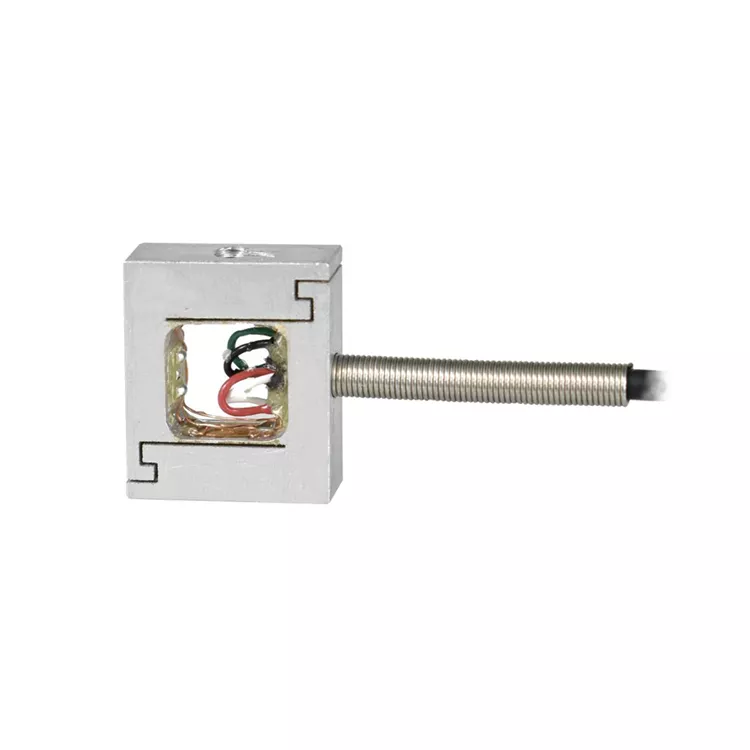

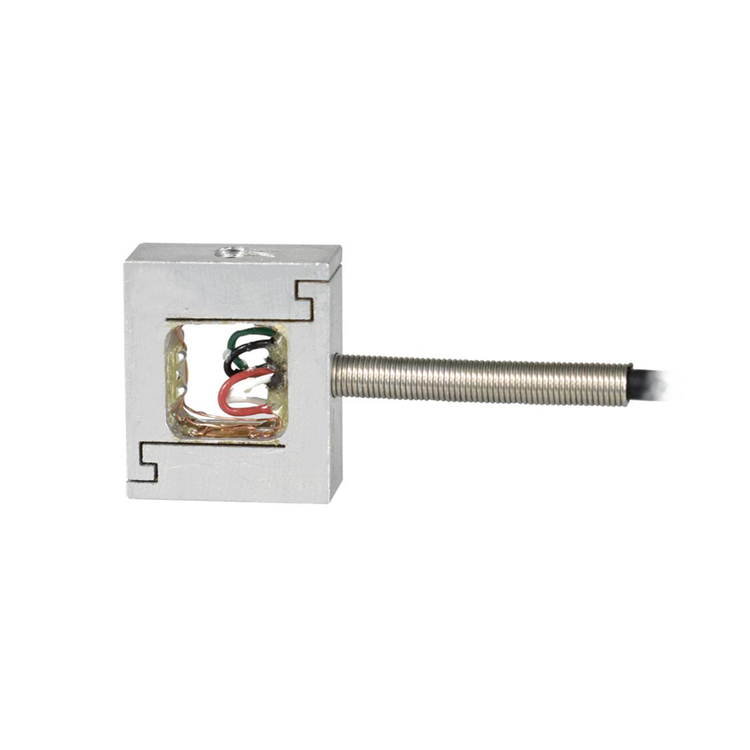

SAINTBOND / LC2303 Compression And Crane Tension Load Cell And Weighing Sensor for Scales
LC2303 Compression And Crane Tension Load Cell And Weighing Sensor for Scales
Product Description
Product Description::
◎S-Type load cell
◎Easy to install
◎Suitable for robotics and force measurements
◎Aluminum construction (0.25Ib~10Ib)
◎Stainless steel construction (25Ib~100Ib)
Dimension:
Technical Parameter:
| Cap. |
0.25/0.5/2/5/10/20/50/100Ib |
| Rated Output |
2.0mV/V,
0.5mV/V(0.25Ib),
1mV/V (0.5Ib) |
Safe Temp. Range |
-50ºC to + 93ºC |
| Nonlinearity |
±0.3% of F.S |
Temp. Compensated |
15ºC to + 72ºC |
| Hysteresis |
±0.3% of F.S |
Input Impedance |
1000 ohm (0.25Ib~0.5Ib)
/350 ohm (10Ib~50Ib) |
| Repeatability |
±0.1% of F.S |
Output Impedance |
1000 ohm (0.25Ib~0.5Ib)
/350 ohm (10Ib~50Ib) |
| Temp. effect on output |
≤0.036% of F.S |
Insulation Resistance |
≥500 M ohm (50V DC) |
| Temp. effect on zero |
≤0.018% of F.S |
Rated Excitation |
10V DC/AC |
| Safe Overload |
1000%,200% (50Ib) |
Maximum Excitation |
20V DC/AC |
| Wire Length |
0.5m |
IP Rating |
IP40 |
| Product name |
LC2303 Compression And Crane Tension Load Cell And Weighing Sensor for Scales |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
