Features and applications: compact size, strong stability, high accuracy, can measure tension and pressure two-way force. Dynamic response is fast, and has strong anti overload ability, mainly used in plug force test, key detection, computer, mobile phone components installation test, etc.
Technical Data:
Capacity
0-5kg~200kg
Material
Stainless Steel
Rated output
2.0 ±10% mV/V
Output Impedance
350±3Ω
Non-linearity
0.05 % F.S.
Insulation
>5000MΩ/10VDC
Hysteresis
0.05 % F.S.
Recommended Excitation
2.5-5V
Repeatability
0.05 % F.S.
Excitation max
10V
Creep(30min)
0.05 % F.S.
Compensated Temp Range
-10~60℃
Temp Effect On Output
0.1 % F.S./ 10℃
Operating Temp Range
-20~80℃
Temp Effect On Zero
0.1 % F.S./ 10℃
Safe Load
1.2
Protection Class
IP 65
Ultimate Load Limit
1.5
Input Impedance
350±15Ω
Cable Length
∅2-3 x 3m
Product name

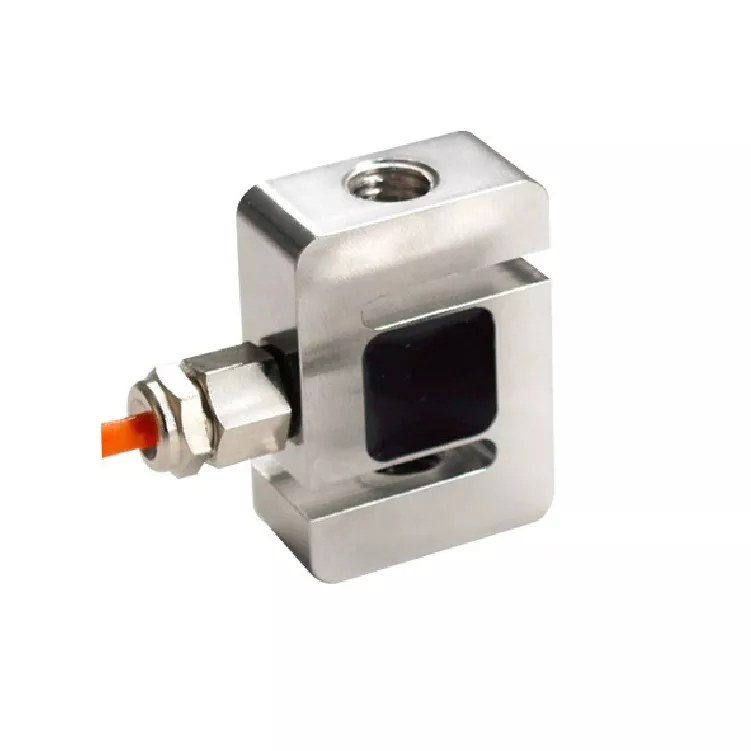

LC2307 In-Line Threaded Force Sensor Micro S Type Sensor
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
