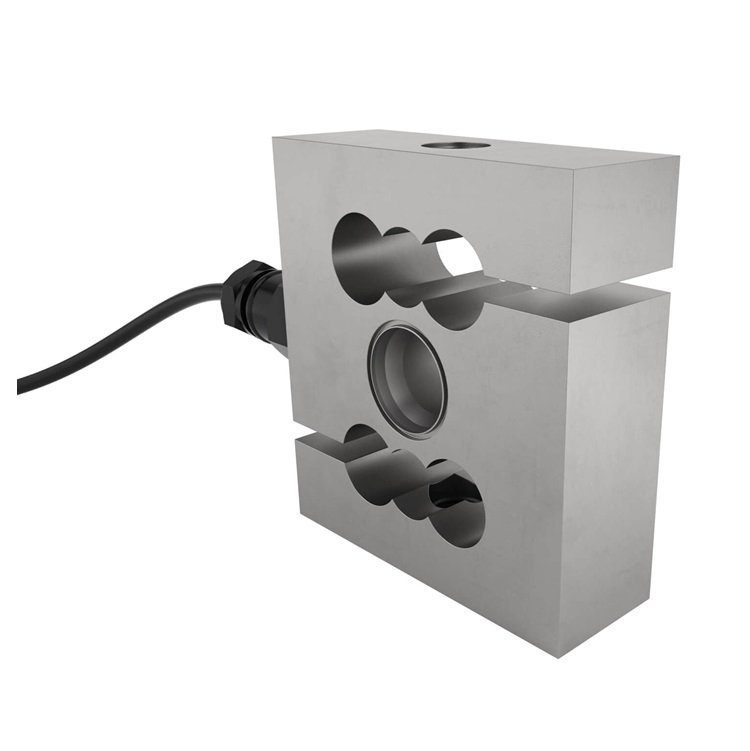

A fully welded, alloy steel or stainless steel tension and compression load cell – the LC257 is ideal for very harsh environments. Available in a wide range of capacities from 1000kg thru to 10,000kg it is particularly suited for higher capacity Process Weighing applications.
Applications:
Suspended tanks and hoppers, crane scales.

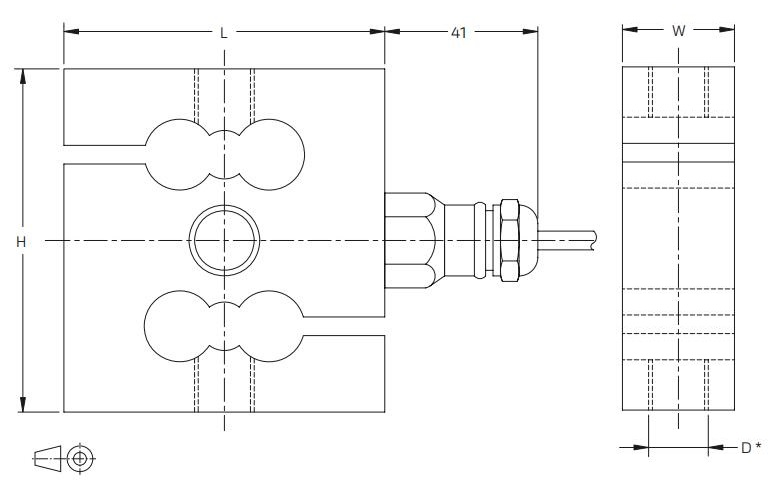

Dimension:mm
Type
H
L
W
Thread D
10/20kN
92
86
30
M16
50kN
136
143
43
M24×2
100kN
120
120
60
M24×3
◎Unified thread 5/8 UNF(10~20kN) and 1-12 UNF (50kN) is available;
