It uses 4-core shielded cable (φ4×300mm). The length of the cable can be adjusted according to clients’ request, but we suggest to use this standard length to ensure the output precision
Technical Parameter:
Rated Load:
0.5/1/3/5/6/10/15/20/25kg
Comprehensive Error:
0.02%F.S
Insulation Resistance:
≥5000MΩ(100VDC)
Rated Output:
1±0.1 & 2±0.1mV/V
Excitation Voltage:
9VDC~12VDC
Non-Linearity:
0.02%F.S
Compensated Temp. Range:
-10℃~+40℃
Hysteresis:
0.02%F.S
Use Temp. Range:
-20℃~+60℃
Repeatability:
0.01%F.S & 0.02%F.S
Temp. Effect On Zero:
0.03%F.S/10℃
Creep:
& 0.02%F.S/10min
Temp. Effect On Span:
0.02%F.S/10℃
Zero Balance:
±1%F.S
Safe Overload:
120%
Input Resistance:
405±10Ω
Ultimate Overload:
150%
Output Resistance:
350±3Ω
Defense Class:
IP65
Product name

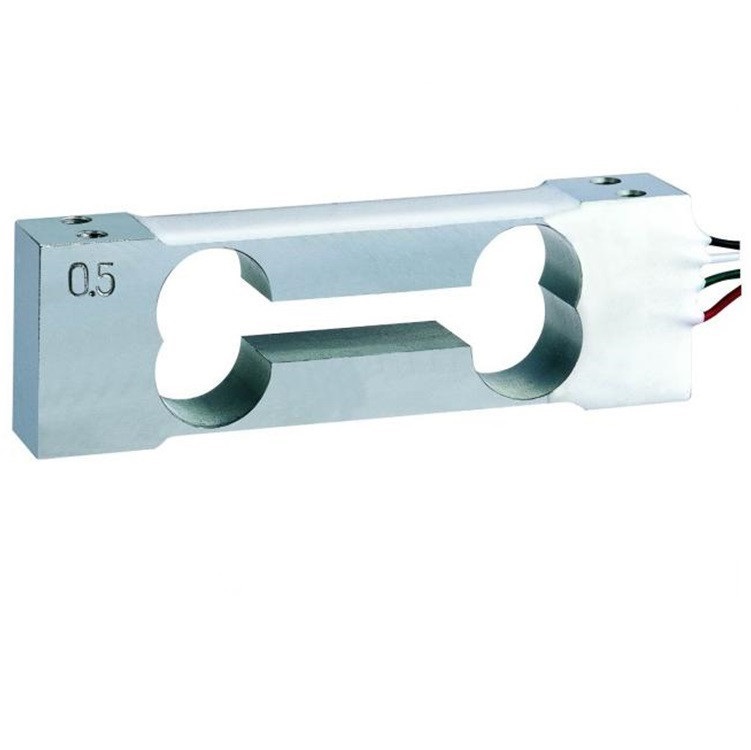

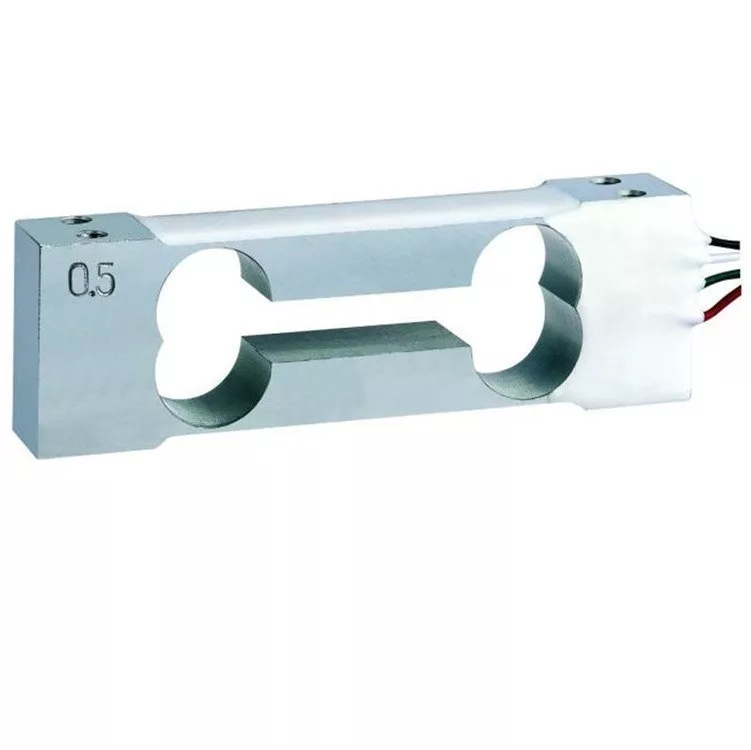

LC3523 Platform Scales Weighing Load Cell Mini Aluminum Load Cell
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
