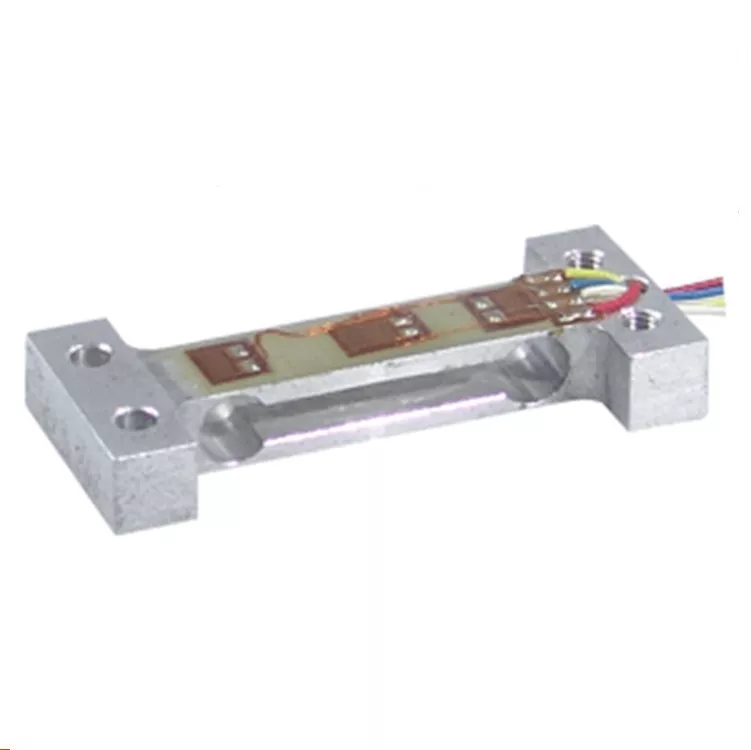

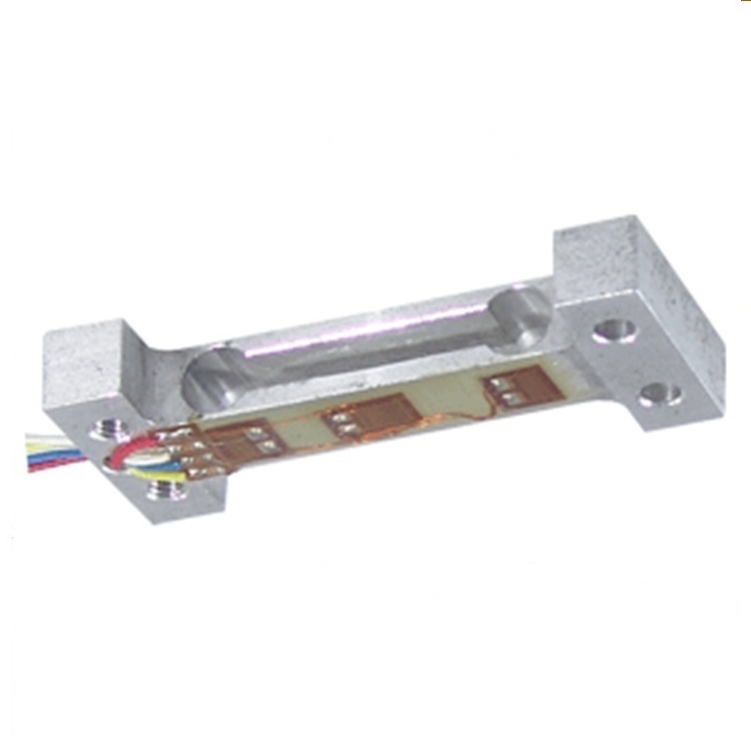

SAINTBOND / LC3704 Parallel Beam Load Cell Force Sensors Miniature Sensors
LC3704 Parallel Beam Load Cell Force Sensors Miniature Sensors
Product Description

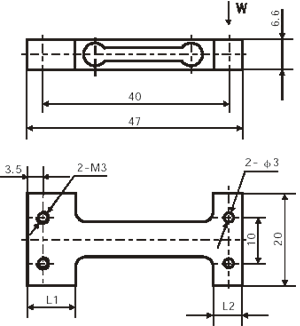

Dimensions:
100g,120g L1=10.5 L2=6.5 ; 300g,500g,1000g L1=6.5 L2=6.5
Technical Parameter:
| Model |
LC3704 |
Temp.Effect on Output |
≤0.05%F.S/10℃ |
| Capacity
Output Sensitivity |
100/120g
0.60±20%mV/V |
Zero Output |
±0.5%F.S |
| Capacity
Output Sensitivity |
300/500/1000g
0.90±20%mV/V |
Input Resistance |
1055±10Ω |
| Comprehensive Error |
0.05 |
Output Resistance |
1000±10Ω |
| Non-linearity |
±0.05%F.S |
Insulation Resistance |
≥2000MΩ (50V) |
| Repeatability |
±0.05%F.S |
Excitation Voltage |
≤6V |
| Hysteresis |
±0.05%F.S |
Operation Temp.Range |
-10–+40℃ |
| Creep |
±0.05(3min)%F.S |
Overload Capacity |
150%F.S |
| Temp.Effect on Zero |
±2.0%F.S/10℃ |
Recommended Use |
Handable Scales |
| Product name |
LC3704 Parallel Beam Load Cell Force Sensors Miniature Sensors |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
