Dimension:
| Cap/Size |
D |
D1 |
H1 |
H2 |
F |
| 10~40t |
44 |
76 |
130 |
80 |
200 |
| 50~60t |
44 |
76 |
210 |
92 |
300 |
| 100t |
64 |
103 |
260 |
121 |
400 |
Product Characteristics:

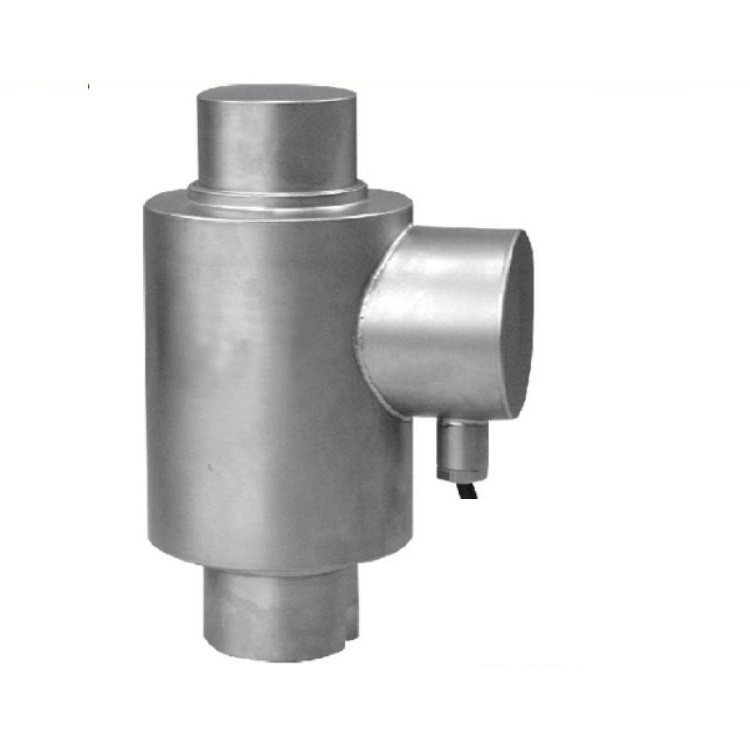

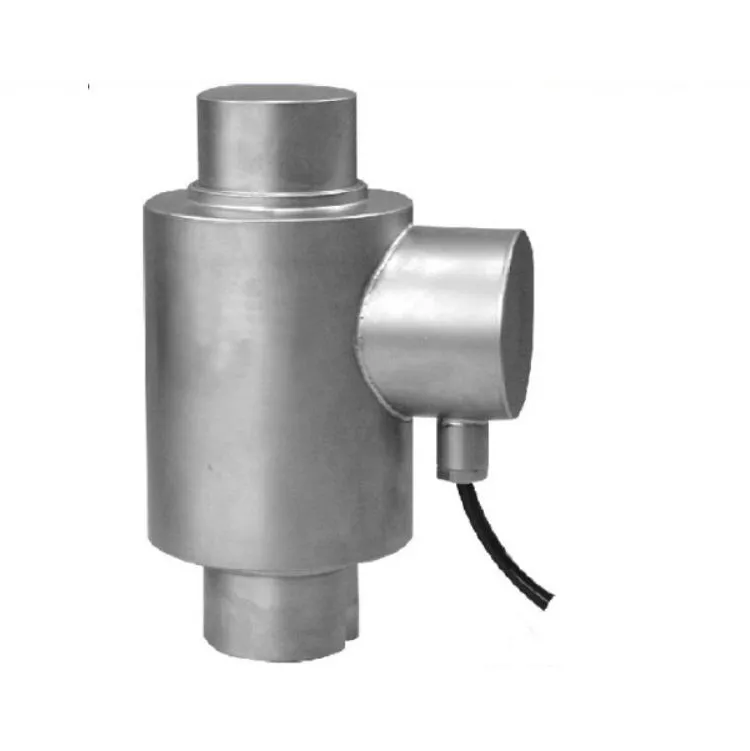

lLC410 load cells are available in the capacities 10t to 100t .
lAlloy Steel/Stainless steel construction,hermetically welded,oil-proof,
waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
lColumn structure, anti-reversal design,good self-aligning ability, suitable for platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
Technical Parameter:
| Rated Load: |
10/30/40/50/60/100t |
Operating Temp. Range: |
-30~+70℃ |
| Sensitivity: |
(2.0±0.1%) mV/V |
Maximum Safe Over Load: |
150%F.S |
| Combined Error: |
±0.03% F.S |
Ultimate Over Load: |
200%F.S |
| Creep Error(30min): |
±0.03% F.S |
Recommend Excitation Vol.: |
10~12V DC |
| Zero Balance: |
±1% F.S |
Max. Excitation Voltage: |
15V DC |
| Temp. Effect On Zero: |
±0.02% F.S/10℃ |
Sealing Class: |
IP67/ IP68 |
| Temp. Effect On Span: |
±0.02% F.S/10℃ |
Element Material: |
Alloy Steel, Stainless steel |
| Input Resistance: |
750±5Ω |
Cable: |
Length=16m(10/40t),20m(60/100t) |
| Output Resistance: |
703±2Ω |
Citation: |
GB/T7551-2008/ OIML R60 |
| Insulation Resistance: |
≥5000MΩ |
Mode Of Connection: |
Red(Input+),Black(Input-),Green(Output+),White(Output-)t-) |
| Product name |
LC410 Rocker Column Compression Load Cell Manufacturer Column Canister Compression Load Cell |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
