It has the characteristics of high precision, long-term stability, easy installation and use, and is suitable for electronic weighing apparatus, lifting equipment and various force measurement and control systems.

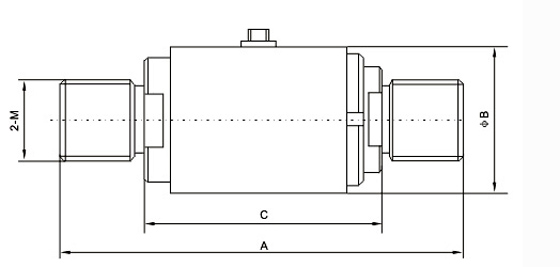

Dimension: Unit:mm
Cap. / Size
A
φB
C
M
10~20t
214
86
124
M42×4.5
30~50t
276
106
156
M56×5.5
70~100t
380
142
180
M76×4
150~200t
500
175
220
M130×6
Specifications:
Capacity:
5T~200T
Accuracy:
0.1%FS
Insulation Resistance:
≥5000MΩ/100VDC
Sensitivity:
1.5~2.0 m V/V
Temperature Effect On Sensitivity:
≤±0.03％F·S/10℃
Non-Linearity:
≤±0.5%F.S
Temperature Effect On Zero Balance:
≤±0.03％F·S/10℃
Repeatability:
≤0.05%FS
Reference Excitation Voltage:
10V (DC)
Hysteresis:
≤0.1%FS
Nominal Range Of Excitation Voltage:
6~12V(DC)
Input Resistance:
380±30Ω
/730±30Ω
Service Temperature:
-30~70℃
Out Resistance:
350±2Ω
/700±3Ω
Safe Load Limit:
120%FS
Product name
LC441 Mini Column Force Load Cell Sensor Truck Load Cell Bóng 500kg
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
