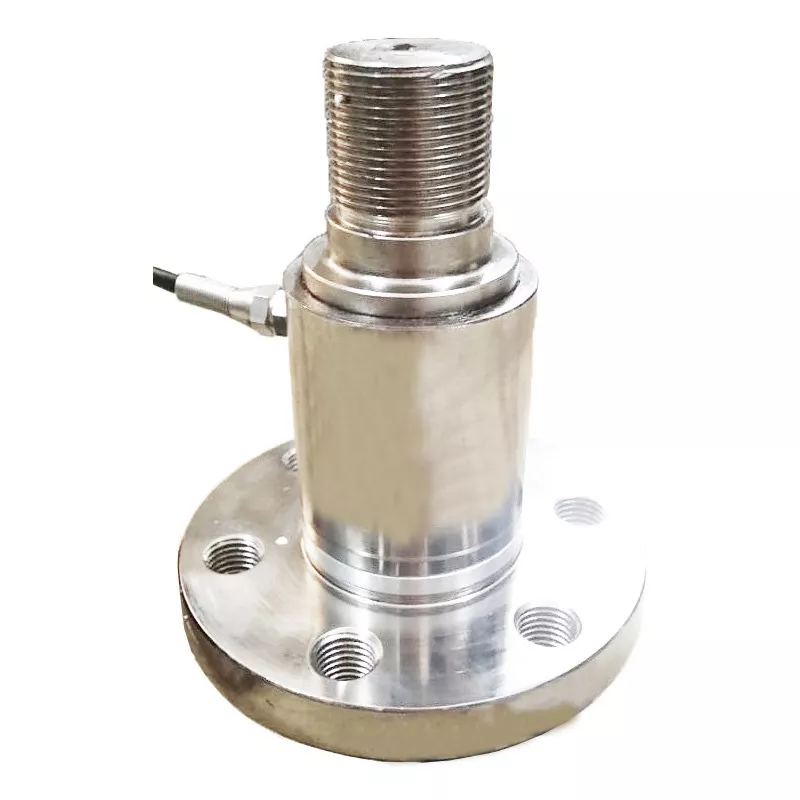

SAINTBOND / LC4500 3 Ton 5 Ton Load Cell Forklift Scale Load Cell
LC4500 3 Ton 5 Ton Load Cell Forklift Scale Load Cell
Product Description
Apply to: Forklift weighing and other weighing scale.
Dimension:
Technical Parameter:
| Rated Load: |
3/5t |
| Sensitivity: |
(2.0±0.1%) mV/V |
Operating Temp. Range: |
-30~+70℃ |
| Combined Error: |
±0.03% F.S |
Max. Safe Over Load: |
150%F.S |
| Creep Error(30min) |
±0.02% F.S |
Ultimate Over Load: |
250%F.S |
| Zero Balance |
±1% F.S |
Recommend Excitation: |
10~12V DC |
| Temp. Effect On Zero: |
±0.017% F.S/10℃ |
Maximum Excitation: |
15V DC |
| Temp. Effect On Span: |
±0.017% F.S/10℃ |
Sealing Class: |
IP67/IP68 |
| Input Resistance: |
750±5Ω |
Element Material: |
-Alloy /Stainless Steel |
| Output Resistance: |
702±2Ω |
Cable: |
Length=12m |
| Insulation Resistance: |
≥5000MΩ |
Citation: |
GB/T7551-2008/ OIML R60 |
| Product name |
LC4500 3 Ton 5 Ton Load Cell Forklift Scale Load Cell |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
