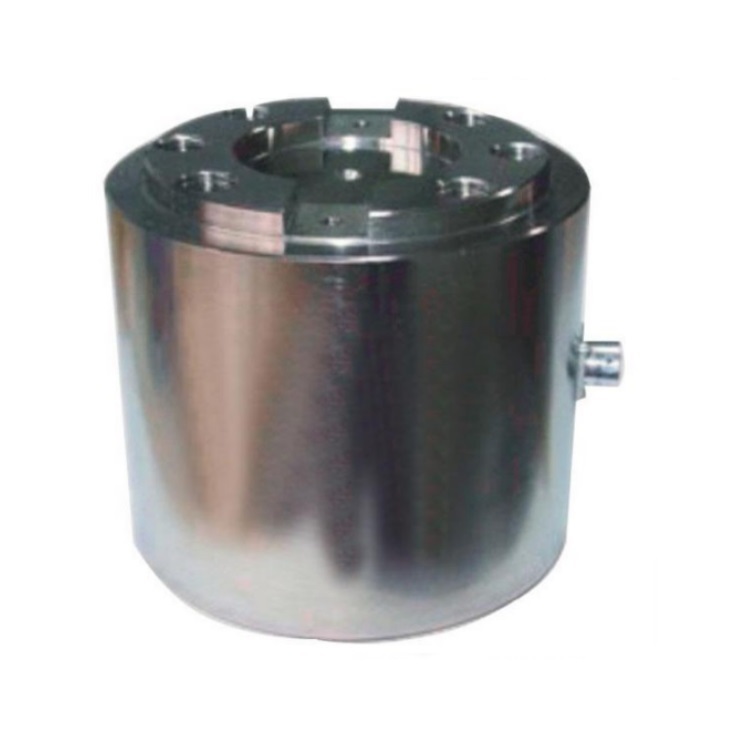

SAINTBOND / LC467 Column Compression Load Cells Torque Load Cell (Flange Connection)
LC467 Column Compression Load Cells Torque Load Cell (Flange Connection)
Product Description

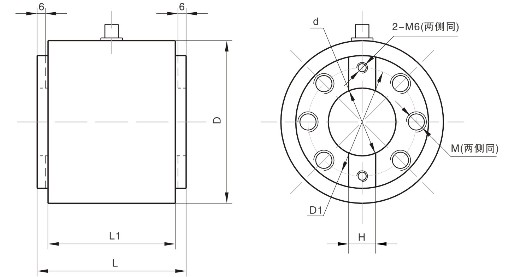

Dimension:(Unit:mm)
| Size
Cap.(kN) |
D |
D1 |
d |
L |
L1 |
H |
M |
| 2000~5000 |
120 |
80 |
50 |
110 |
96 |
20 |
6-M14 |
| 8000~10000 |
130 |
90 |
60 |
120 |
112 |
20 |
6-M16 |
Specification:
| Capacity |
2000/5000/8000/10000kN |
| Accuracy |
0.2%FS |
Insulation Resistance |
>2000MΩ |
| Sensitivity |
1.5~2 mV/V |
Temp.Effect on Sensitivity |
<0.1%FS/10℃ |
| Non-linearity |
≤0.2%FS |
Temp.Effect on Zero Balance |
<0.1%FS/10℃ |
| Repeatability |
≤0.05%FS |
Reference Excitation |
10V(DC) |
| Hysteresis |
≤0.2%FS |
Nominal Range of Excitation Volt. |
6~12V(DC) |
| Input Resistance |
760Ω |
Service Temperature Range |
-30~70℃ |
| Output Resistance |
7000Ω |
Safe Load Limit |
120%FS |
| Product name |
LC467 Column Compression Load Cells Torque Load Cell (Flange Connection) |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
