SAINTBOND / LC478 Saintbond Load Cell 200/300/400/500/600/800/1000t Compression Column Load Cell
LC478 Saintbond Load Cell 200/300/400/500/600/800/1000t Compression Column Load Cell
Product Description

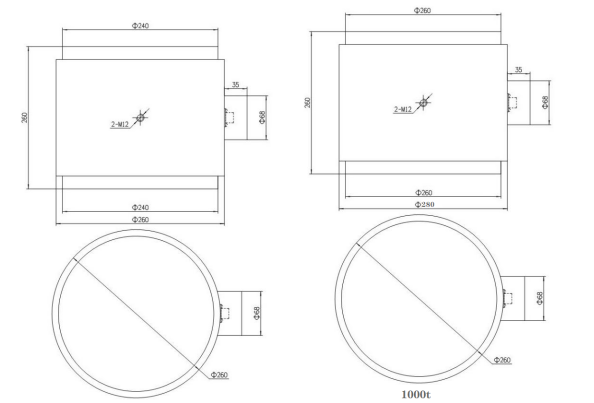

Dimension:
Technical Parameter:
| Rated Load: |
200/300/400/500/600/800/1000t |
| Sensitivity: |
(2.0±0.1%) m V/V |
Operating Temp. Range: |
-30~+70℃ |
| Combined Error: |
±0.02% F.S |
Max. Safe Over Load: |
150%F.S |
| Creep Error(30min): |
±0.02% F.S |
Ultimate Over Load: |
300%F.S |
| Zero Balance: |
±1% F.S |
Recommend Excitation: |
10~12V DC |
| Temp. Effect On Zero: |
±0.02% F.S/10℃ |
Maximum Excitation: |
15V DC |
| Temp. Effect On Span: |
±0.02% F.S/10℃ |
Sealing Class: |
IP67/IP68 |
| Input Resistance: |
410±10Ω |
Element Material: |
Alloy /Stainless Steel |
| Output Resistance: |
350±3Ω |
Cable: |
10m(10t-20t), 15m(50t-250t) |
| Insulation Resistance: |
≥5000MΩ |
Citation: |
GB/T7551-2008/ OIML R60 |
| Product name |
LC478 Saintbond Load Cell Compression Column Load Cell |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
