It has the characteristics of high precision, high dynamic response, small size and easy installation. It is suitable for riveting machine, extrusion equipment, film press, impact testing and industrial automation measurement and control fields.
Technical Data:
Rated Capacity
5~1000kg
Excitation,Recommended
5~12VDC(10VDC)
Sensitivity
1.0～2.0mV/V
Operating Temp.Range
-10－+40℃
Zero Balance
≤±0.1 mV/V
Safe Overload
120%R.C.
Rated Output
2.0±0.5%mV/V
Insulation Resistance
≥2000MΩ(50VDC)
Input Resistance
380±30Ω/730±30Ω
Hysteresis Error
±0.05%R.O.
Output Resistance
350±2Ω/700±2Ω
Creep in 2 Min.
±0.05%R.O.
Linearlty Error
±0.05%R.O.
Temp.Effect on Output
±0.05%R.O./10℃
Repeatability Error
±0.05%R.O.
Temp.Effect on Zero
±0.05%R.O./10℃
Product name

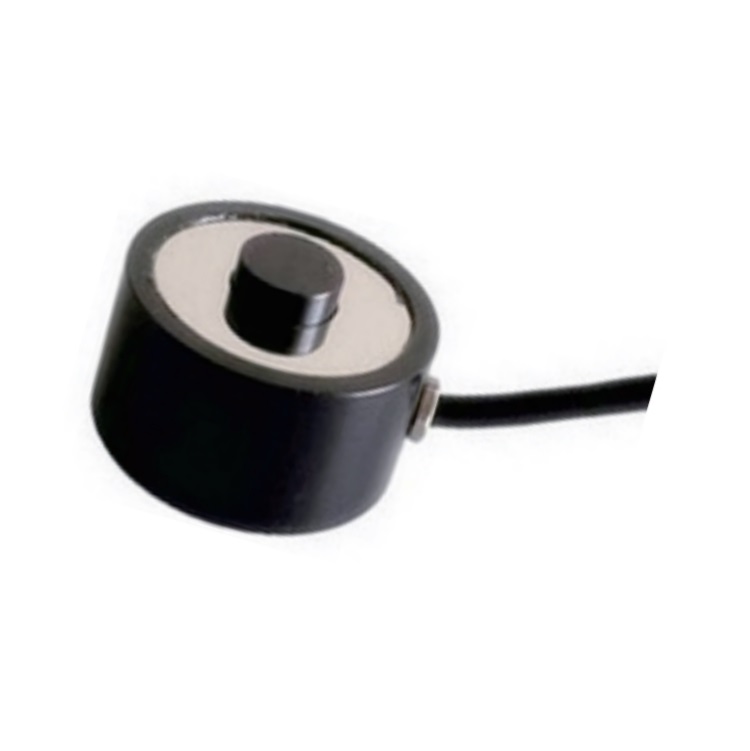

LC5020 Small Load Sensor Mini Compression Button Type Load Cell Sensor
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
