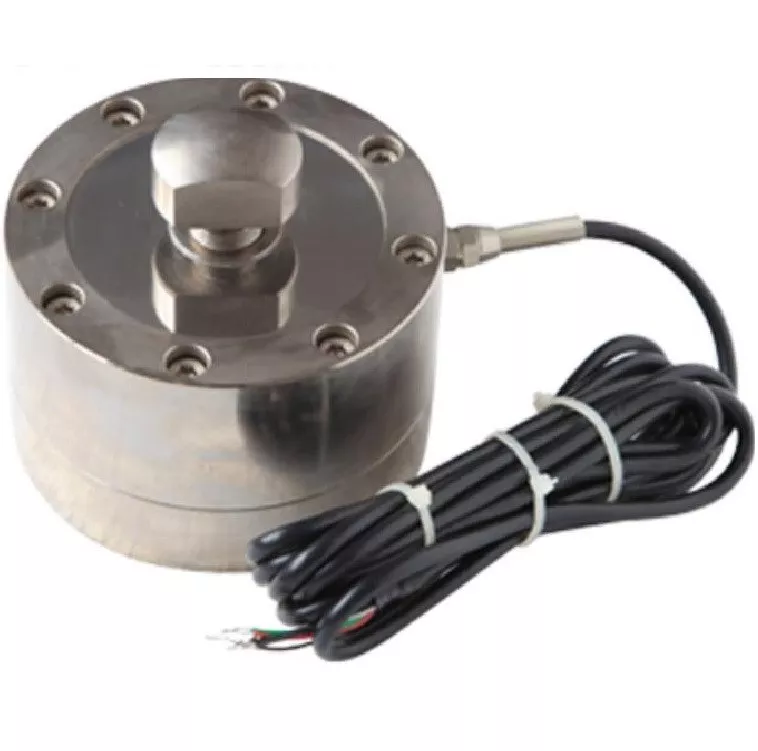

LC518 Low Profile Load Cell Compression Sensor Round Spoke Type Load Cell

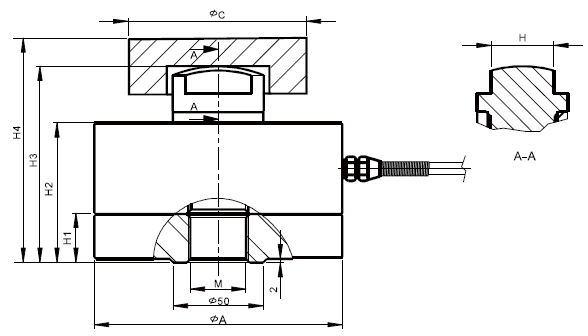

Dimensions: Unit: mm
| Cap.(Ton) | ΦA | ΦC | H | H1 | H2 | H3 | H4 | M |
| 0.5/1/2/3t | 105 | 38 | 20 | 25 | 70 | 85 | 95 | 14×2 |
| 5t | 120 | 48 | 25 | 30 | 80 | 95 | 110 | 20×1.5 |
| 10/20/30t | 155 | 78 | 35 | 35 | 90 | 115 | 139 | 32×2 |
Technical Parameter:
| Rated Load: | 0.5/1/3/5/10/20/30t | Operating Temp. Range | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Input Resistance: | 775±5Ω | Cable: | Length=L:13m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+),
Black(Input-),White(Output-) |
| Product name | LC518 Low Profile Load Cell Compression Sensor Round Spoke Type Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
