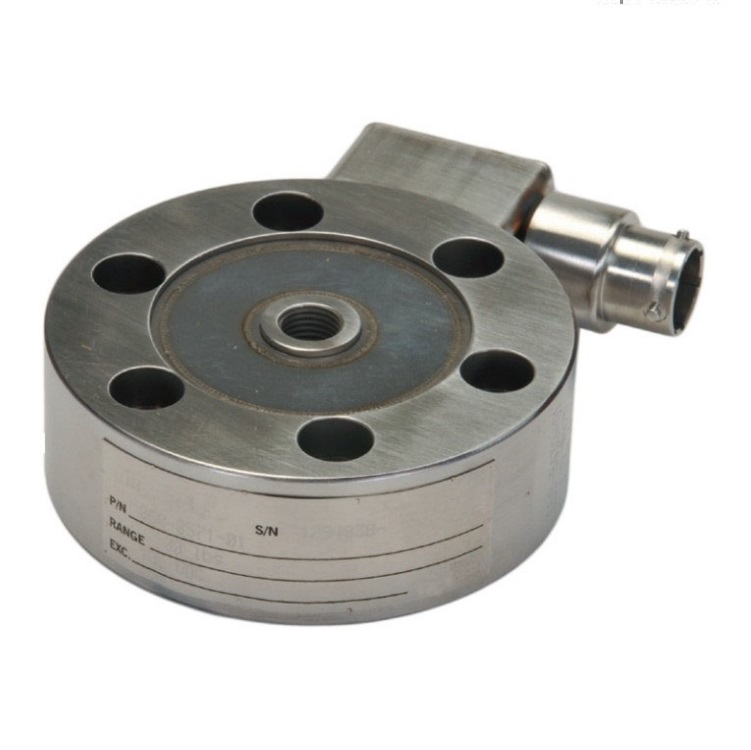

LC531 is a low profile”pancake”type load cells. These bonded foil. strain gauge load cells are engineered to measure loads from 5lb to 500,000lb. The tension / compression LC531 is designed with the threaded hole running completely through the center of the cell. The LC531 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills,extruding processes and weighing. Each unit has a welded construction and can be hermetically sealed for added durability. The LC531 load cells are available with optional 0 Vdc to 5Vdc or0 Vdc to 10Vdc or 4mA to 20mA output.

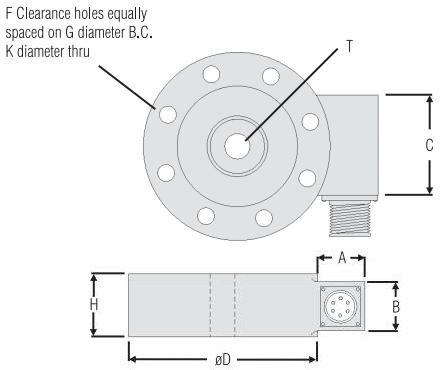

Dimension:
Cap. D H H** F# Φ G Φ K T A A* B B* C
(lb) Mm(in) Mm(in) Mm(in) Mm(in)
B.C.
Mm(in)
Thru.
Mm(in) Mm(in) Mm(in) Mm(in) Mm(in)
5/10/25
63.5
(2.50)
20.32
(0.80)
44.45
(1.75)
6
50.8
(2.000)
4.83
(0.19)
1/4-28
UNF
20.83
(0.82)
63.5
(2.5)
19.05
(0.75
22.86
(0.9)
31.75
(1.25)
50/100/250/500/1000
76.2
(3.00)
25.4
(1.00)
44.45
(1.75)
6
57.15
(2.250)
7.11
(0.28)
3/8-24
UNF
20.83
(0.82)
63.5
(2.5)
19.05
(0.75
22.86
(0.9)
31.75
(1.25)
2000/3000,
4000/5000
88.9
(3.50)
25.4
(1.00)
44.45
(1.75)
6
66.68
(2.625)
8.64
(0.34)
1/2-20
UNF
20.83
(0.82)
63.5
(2.5)
19.05
(0.75
22.86
(0.9)
31.75
(1.25)
7500/100000,
15000
139.7
(5.50)
45.7
(1.80)
45.7
(1.80)
8
114.3
(4.500)
10.16
(0.40)
1-14
UNS
31.75
(1.25)
58.42
(2.3)
38.1
(1.50)
38.1
(1.50)
50.8
(2.00)
20000/30000,
50000
152.4
(6.00)
45.7
(1.80)
45.7
(1.80)
8
123.83
(4.875)
13.46
(0.53)
1 1/2-12
UNF
31.75
(1.25)
58.42
(2.3)
38.1
(1.50)
38.1
(1.50)
50.8
(2.00)
75000,
100000
228.6
(9.00)
63.5
(2.50)
63.5
(2.50)
12
196.85
(7.750)
16.76
(0.66)
2-12 UN
31.75
(1.25)
58.42
(2.3)
38.1
(1.50)
38.1
(1.50)
50.8
(2.00)
150000,
200000
279.4
(11.00)
63.5
(2.50)
63.5
(2.50)
12
241.3
(9.500)
19.81
(0.78)
2 1/2-12
UN
31.75
(1.25)
58.42
(2.3)
38.1
(1.50)
38.1
(1.50)
50.8
(2.00)
300000/400000/
500000
355.6
(14.00)
107.95
(4.25)
107.95
(4.25)
12
298.45
(11.750)
26.16
(1.03)
3 1/2-8
UN
31.75
(1.25)
58.42
(2.3)
38.1
(1.50)
38.1
(1.50)
**

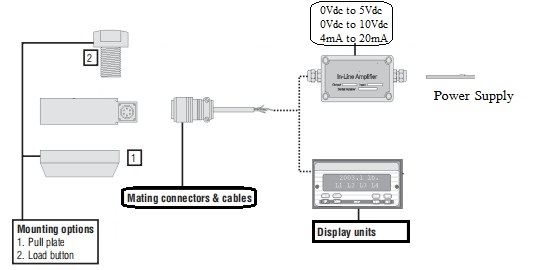

Typical System Diagram:
Allowable Maximum Loads:
Capacity Side Load Bending Torque
(lb) (lb) (lb-in) (lb-ft)
5 to25
50%
40
25
50 to 1000
45
35
25
2000 to 5000
30
25
25
7500 to 30000
20
20
15
50000 to 100000
20
20
15
150000 to 200000
20
20
15
300000
20
20
10
400000
20
20
10
500000
20
20
10
Technical Parameter:
Rated Load:
5~500000lb
Sensitivity:
(2.0±0.1%)) mV/V
Operating Temp.Range:
-30~+70℃
Combined Error:
±0.03%F.S
Maximum Safe Over Load:
150%F.S
Creep Error(30min):
±0.03% F.S
Ultimate Over Load:
200%F.S
Zero Balance:
±1% F.S
Recommend Excitation Vol.:
10~12V DC
Temp. Effect On Zero:
±0.05% F.S/10℃
Maximum Excitation Vol.:
15V DC
Temp. Effect On Span:
±0.05% F.S/10℃
Sealing Class:
IP67/IP68
Input Resistance:
750±5Ω
Element Material:
Alloy/Stainless Steel
Output Resistance:
701±2Ω
Cable:
3m~15m
Insulation Resistance:
≥5000MΩ
Citation:
GB/T7551-2008/
OIML R60
Mode Of Connection:
Red(Input+),Black(Input-),Green(Output+),White(Output-)
