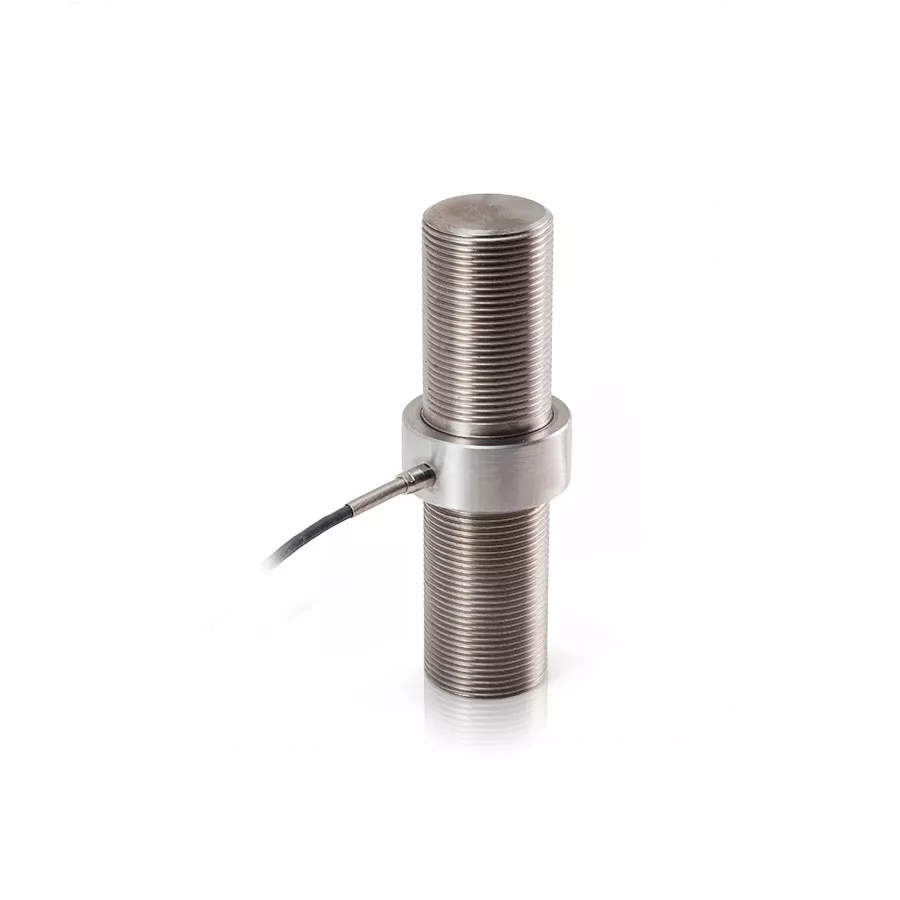

SAINTBOND / LC5404 Threaded Rod End Load Cell Threaded In Line Load Cell
LC5404 Threaded Rod End Load Cell Threaded In Line Load Cell
Product Description
Features:
◎Miniature Size;
◎Fast response and low deflection;
◎Notable Nonlinearity;
◎For use in both tension and compression;

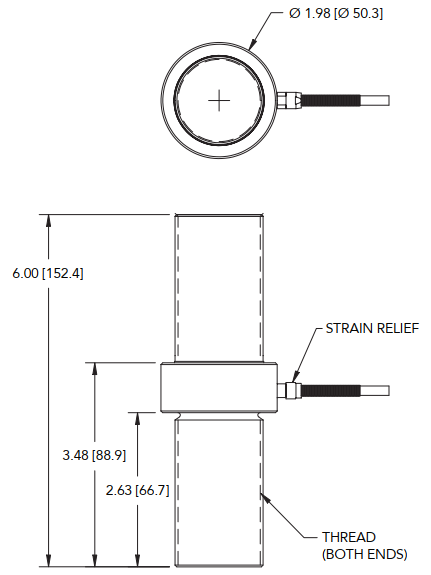

Dimension:Inches(mm)
| Type |
Capacity |
Thread |
Natural Frequency |
| klb |
kN |
(kHz) |
| LC5404 |
50 |
222.4 |
1 1/2-12 |
8.1 |
| 50 |
222.4 |
M36x4 |
8.1 |
Technical Parameter:
| Rated Capacity |
50klb / 222.4kN |
Excitation,: |
5~12VDC(10VDC) |
| Rated Output |
2.0±0.5%mV/V |
Operating Temp.Range: |
-10－+40℃ |
| Zero Balance |
≤±0.1 mV/V |
Safe Overload: |
150%R.C. |
| Input Resistance |
350±30Ω |
Insulation Resistance: |
≥500MΩ(50VDC) |
| Output Resistance |
350±2Ω |
Hysteresis Error: |
±0.2%R.O. |
| Linearity Error |
±0.25%R.O. |
Temp.Effect on Output: |
±0.05%R.O./10℃ |
| Repeatability Error |
±0.2%R.O. |
Temp.Effect on Zero: |
±0.05%R.O./10℃ |
| Element Material: |
17-4 PH Stainless Steel |
Calibration (standard): |
Tension; |
|
|
Calibration (available): |
Compression; |
| Product name |
LC5404 Threaded Rod End Load Cell Threaded In Line Load Cell |
| Brand |
SAINTBOND |
| Market |
All over the world |
| Features |
High precision and stable performance |
| Advantage |
0EM/ODM |
| Sample Lead Time |
5~ 40Days |
| Sample price |
The price is different according to product capacity |
| Custom Design |
Welcome |
| Form of sale |
Factory supply |
