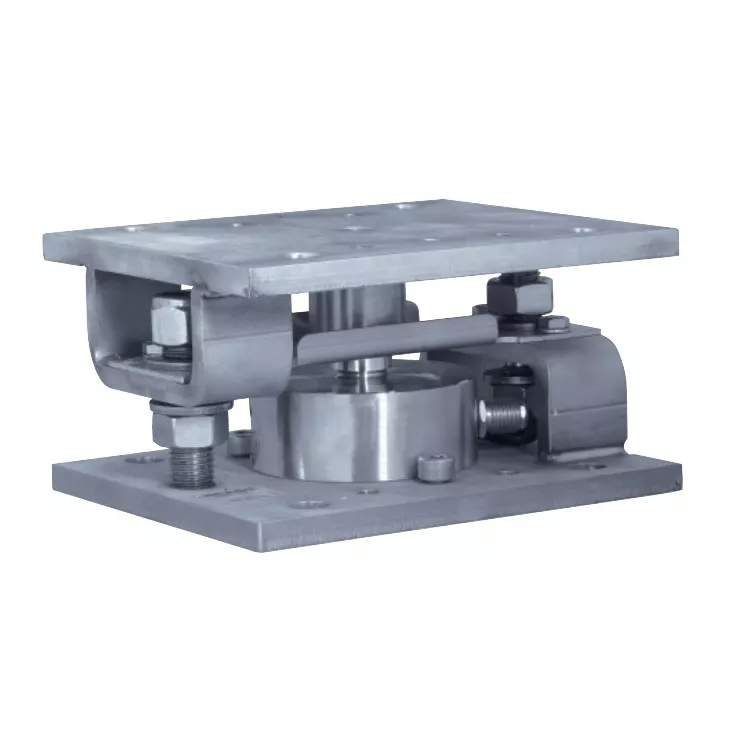

LC559 Weighing System Load Cell Low Profile Spoke Load Cell

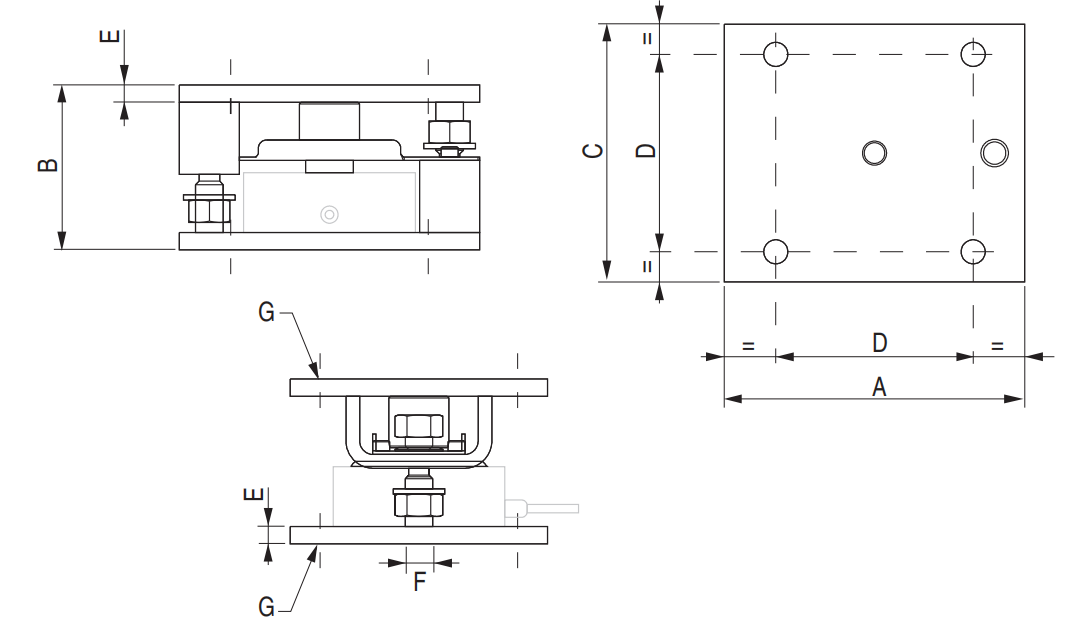

Dimension:Unit mm
| Cap. | A | B | C | D | E | F | G(×8） | Weight |
| (t) | (mm) | (kg) | ||||||
| 0.25~15t | 175 | 96 | 150 | 115 | 10 | M16 | Φ14 | 6 |
| 30t | 230 | 118 | 200 | 160 | 10 | M20 | Φ17 | 10 |
Technical Parameter:
| Rated Load: | 0.25t~30t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=L:13m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/OIML R60 |
| Insulation Resistance: | ≥5000MΩ |
| Product name | LC559 Weighing System Load Cell Low Profile Spoke Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
