SAINTBOND / LC5995 Low Profile Button Load Cells Subminature Load Cell

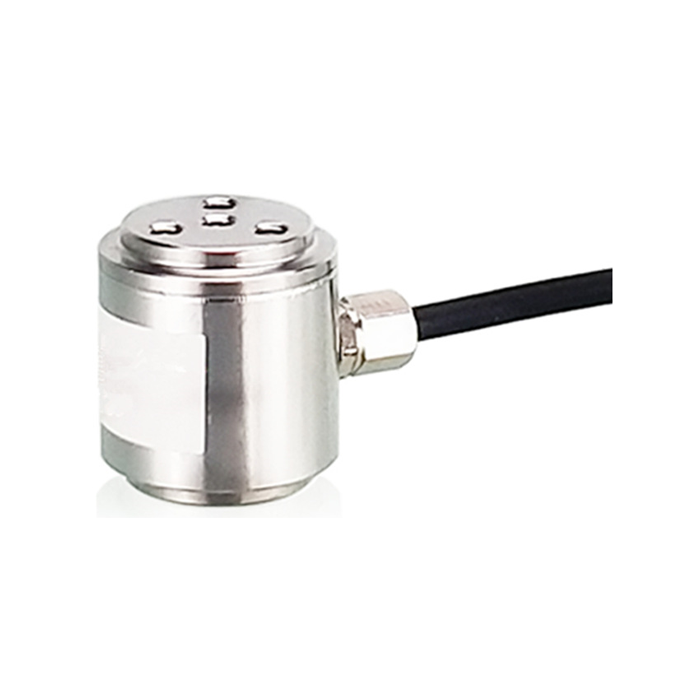

LC5995 Low Profile Button Load Cells Subminature Load Cell
Product Description

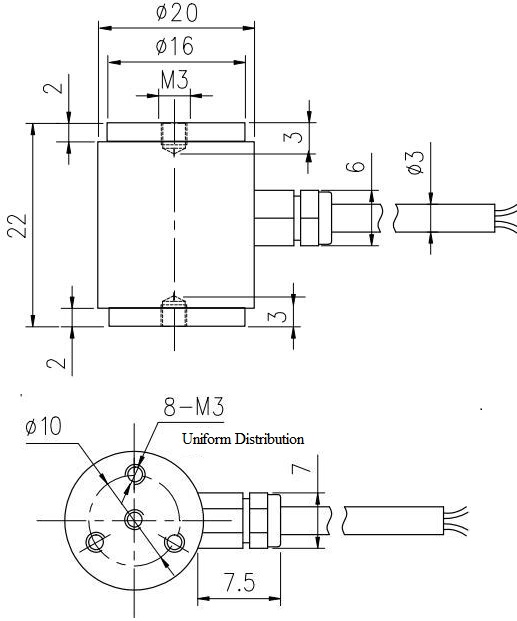

Dimension Unit:mm :
Description:
High quality stainless steel, small size, compact structure, high measuring accuracy, suitable for harsh environment, narrow space measuring force weighing place.
Technical Data:
Capacity
20/30/50/100/200/
300/500/1000N
Input Impedance
350±15Ω
Rated output
2.0 ±10% mV/V
Output Impedance
350±3Ω
Non-linearity
0.1% F.S.
Insulation
>5000MΩ
Hysteresis
0.1% F.S.
Recommended Excitation
2.5-5V
Repeatability
0.1% F.S.
Excitation max
10V
Creep(30min)
0.1% F.S.
Compensated Temp Range
0~70℃
Temp Effect On Output
0.1% F.S./10℃
Operating Temp Range
-20~70℃
Temp Effect On Zero
0.1% F.S./10℃
Safe Load
1.2
Protection Class
IP 65
Ultimate Load Limit
1.5
Material
Stainless Steel
Cable Length
∅3 x 3m
Product name
LC5995 Low Profile Button Load Cells Subminature Load Cells
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
Custom Design
Welcome
Form of sale
Factory supply
