It has the characteristics of small size, wide range of measurement and high dynamic response. It is suitable for the measurement of large force in small space and small volume, stamping equipment and automatic measurement and control system.
Technical Data:
Capacity
1~15t
Rated output
1.0～1.5mV/V
Input Impedance
380±30Ω/730±30Ω
Non-linearity
≤±0.5%F.S
Output Impedance
350±2Ω/700±3Ω
Hysteresis
≤±0.5%F.S
Insulation
>5000MΩ/10VDC
Repeatability
≤±0.5%F.S
Recommended Excitation
2-10V
Creep(30min)
0.05 % F.S.
Excitation max
15V
Temp Effect On Output
0.05 % F.S./10℃
Compensated Temp Range
-10~60℃
Temp Effect On Zero
0.05 % F.S./10℃
Operating Temp Range
-20~80℃
Protection Class
IP 65
Safe Load
1.2
Material
Stainless Steel
Ultimate Load Limit
1.5
Product name

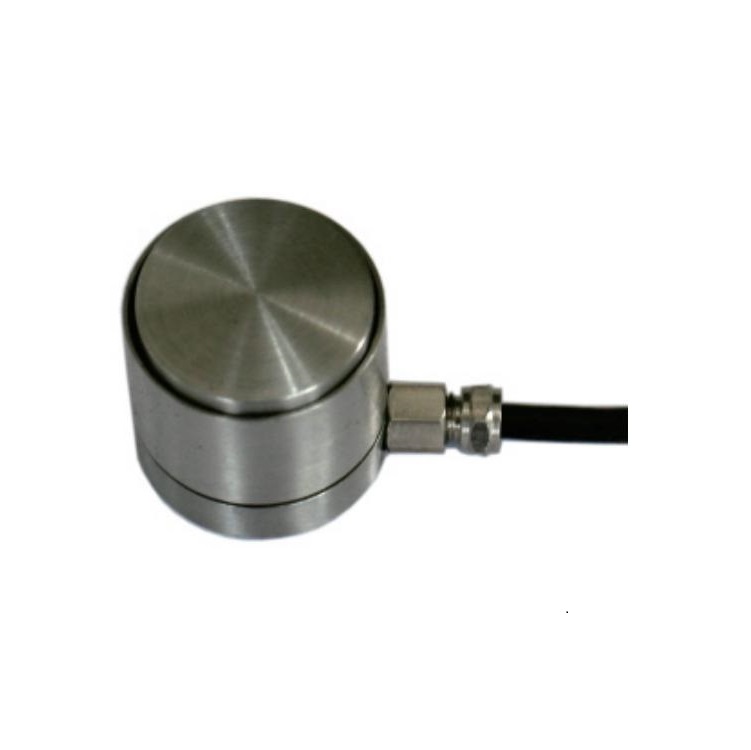

LC5996 Best Load Cells Small Size Mini Column Load Cell Sensor
Brand
SAINTBOND
Market
All over the world
Features
High precision and stable performance
Advantage
0EM/ODM
Sample Lead Time
5~ 40Days
Sample price
The price is different according to product capacity
